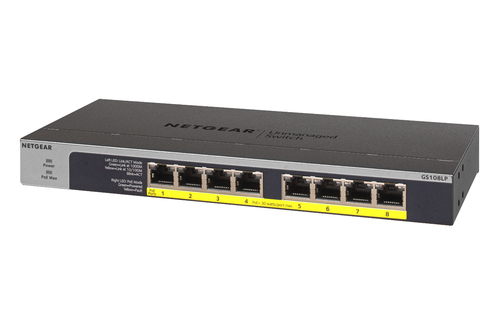

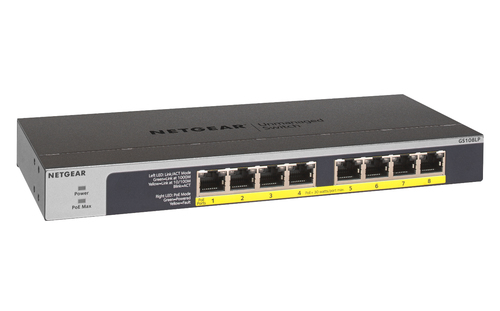

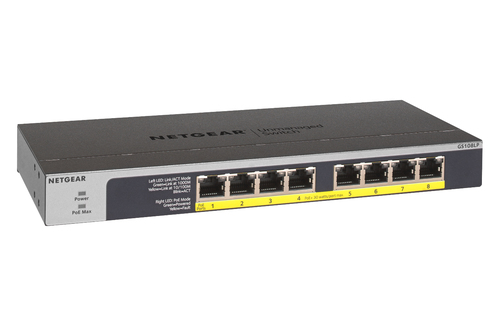

NETGEAR GS108LP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U, Wall mountable

Instant Connectivity with Reliable Performance The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

High quality components and Energy Efficiency NETGEAR switches are built with top quality components to assure a long life. They are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.

PoE+ Support Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power. All models have a built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch.

The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included).

Specifications

BrandNETGEAR
Manufacturer part no.GS108LP-100EUS
Our part no.0714453
EAN0606449134971
CategoryNetworking › Managed Switches
Weight1.7 kg
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Data transmission
Switching capacity16 Gbit/s
MAC address table4000 entries
Store-and-forwardYes
Jumbo frames supportYes
Design
Rack mountingYes
Form factor1U
Product colourBlack, Grey
LED indicatorsYes
Wall mountableYes
Number of fans0 fan(s)
Performance
Buffer size192 KB
Plug and PlayYes
Mean time between failures (MTBF)2752476 h
Power
Power sourceDC/PoE
DC input voltage54 V
Input current1.25 A
Power consumption (typical)67.5 W
Power consumption (max)130 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget60 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Heat dissipation230.85 BTU/h
Weight & dimensions
Width236 mm
Depth102 mm
Height27 mm
Weight600 g
Logistics data
Harmonized System (HS) code85176990
