Description

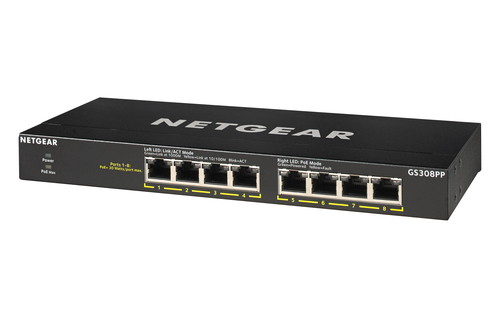

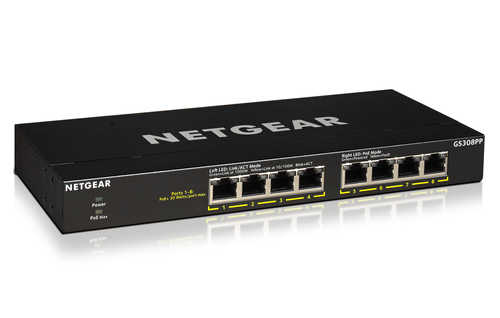

NETGEAR GS308PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS308PP-100EUS |
| Our part no. | 0714657 |
| EAN | 0606449146851 |
| Category | Networking › Managed Switches |
| Weight | 1.7 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

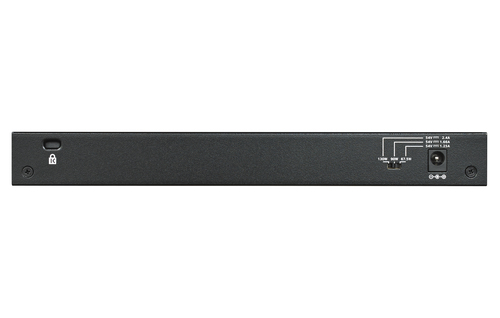

| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Latency (1 Gbps) | 3 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 2752476 h |
| Power | |
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (max) | 87.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 300.6 BTU/h |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 600 g |
| Certificates | |
| Certification | CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
