Description

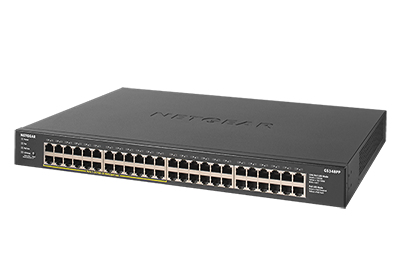

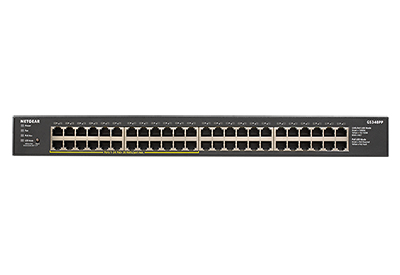

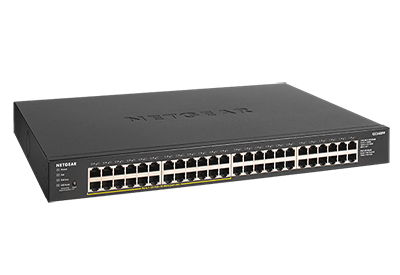

NETGEAR GS348PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
NETGEAR SOHO Ethernet Unmanaged Switches SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.
Extended Features
- Choice of Fast Ethernet and Gigabit Ethernet connectivity - Energy-efficient technology for power savings - Auto-MDI/MDIX eliminates the need for crossover cables - Non-blocking switching architecture for maximum throughput at wire speed - Auto-negotiation for automatic connection at the highest common speed between switch and an end device - Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices - Fanless design for silent opeartion - Desktop, wall-mountable or rack-mountable (GS324, GS348)
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS348PP-100EUS |
| Our part no. | 0714661 |
| EAN | 0606449145588 |
| Category | Networking › Unmanaged Switches |
| Weight | 5.7 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| Data transmission | |
| Switching capacity | 96 Gbit/s |
| Forwarding rate | 1.448 Mpps |
| MAC address table | 8000 entries |
| Latency (1 Gbps) | 4 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 1.5 MB |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Performance | |
| Mean time between failures (MTBF) | 570972 h |
| Power | |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 410 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Other features | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1402.2 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 4.56 kg |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Technical details | |
| Shipping (inner) case height | 43.2 cm |
| Shipping (inner) case width | 56.7 cm |
| Shipping (inner) case length | 24.1 cm |
| Shipping (inner) case net weight | 13.1 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Certificates | |
| Certification | CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
