Description

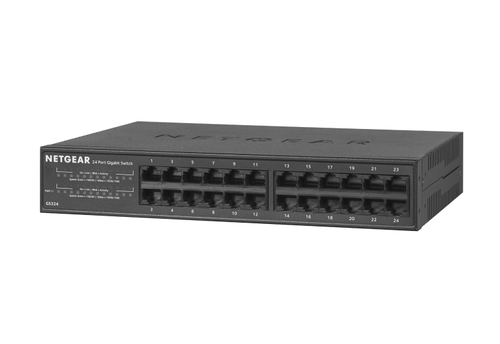

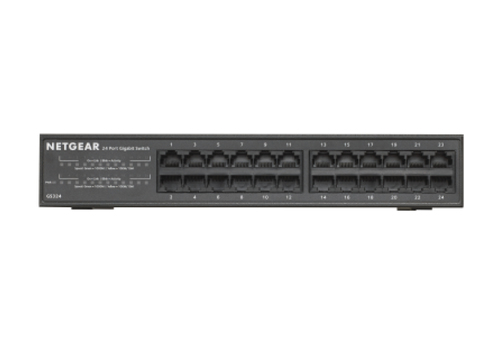

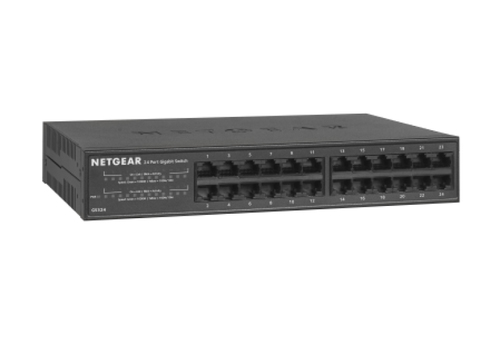

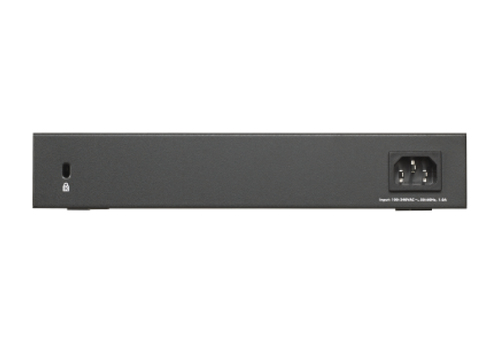

NETGEAR GS324, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting, Wall mountable
Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.
PLUG & PLAY Simple setup with no software or configuration needed.
FLEXIBLE MOUNTING Mount on rack, desktop, or wall.
SMALL SIZE, METAL CASE, AND SILENT OPERATION Durable quality, space saver, and quietness for peace of mind.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS Can be placed on desk or on mounted rack and will operate quietly with assured durability.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS324-200EUS |
| Our part no. | 0714787 |
| EAN | 0606449152012 |
| Category | Networking › Unmanaged Switches |
| Weight | 2.3 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5 |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Data transmission | |
| Switching capacity | 48 Gbit/s |
| MAC address table | 8000 entries |
| Latency (1 Gbps) | 4.7 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.512 MB |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Wall mountable | Yes |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 620798 h |
| Power | |
| Power supply included | Yes |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (max) | 11.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 37.96 BTU/h |
| Weight & dimensions | |
| Width | 252 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.31 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Certificates | |
| Certification | CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
