Description

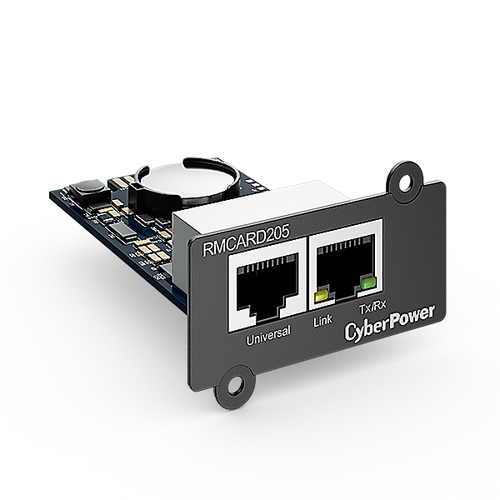

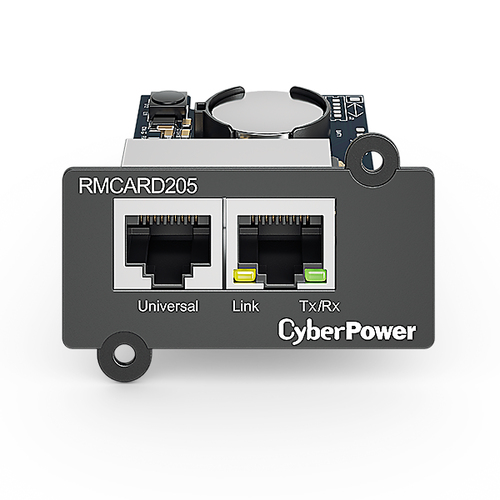

CyberPower RMCARD205, Internal, Wired, Ethernet, 100 Mbit/s, Blue
A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors, and controls CyberPower OR and PR Series UPS systems and ATS PDUs via a standard web browser or network management system (NMS) connection. Especially suited to enterprise installations where the administrator might not be onsite, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, and automatic event notification sent via Email, SMS, SNMP Traps, or Syslog. Our PowerPanel® Business Edition Client auto-shutdown software protects servers and workstations from data loss due to power failure. The MD5 security management safeguards the integrity of the network.
An optional environmental sensor (ENVIROSENSOR) can be added to RMCARD205 to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environment. Administrators define temperature parameters in Fahrenheit or Celsius; rising temperatures will prompt the RMCARD305 to send a predefined notification. The RMCARD205 comes with a three-year warranty.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | RMCARD205 |
| Our part no. | 0R60148 |
| EAN | 4712364141089 |
| Category | Networking › Network Cards & Line Cards |
| Weight | 0.2 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100 |
| Web-based management | Yes |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SMTPS, SSH, SSL, TLS, Telnet, FTP, SCP, Syslog and Modbus TCP |
| Design | |
| Product colour | Blue |
| Internal | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 54 mm |
| Depth | 76.5 mm |
| Height | 36.1 mm |
| Weight | 38 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 168 mm |
| Package depth | 164 mm |
| Package height | 58 mm |
| Package weight | 250 g |
| Packaging content | |
| Cables included | Serial |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Other features | |
| Quick start guide | Yes |
| Management protocols | TCP/IP, UDP, FTP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNMPv1/v3, IPv4/v6, NTP, SMTP, Syslog, RADIUS, LDAP, LDAPS, and Windows Active Directory |
