Description
CyberPower RELAYIO500, RoHS, 0 - 40 °C, -10 - 50 °C, 0 - 90%, 0 - 95%, 41.8 mm

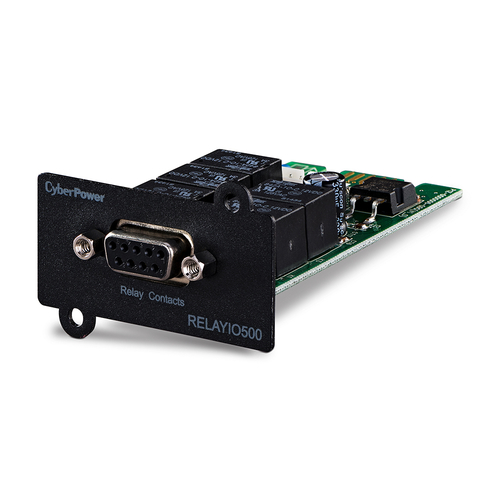

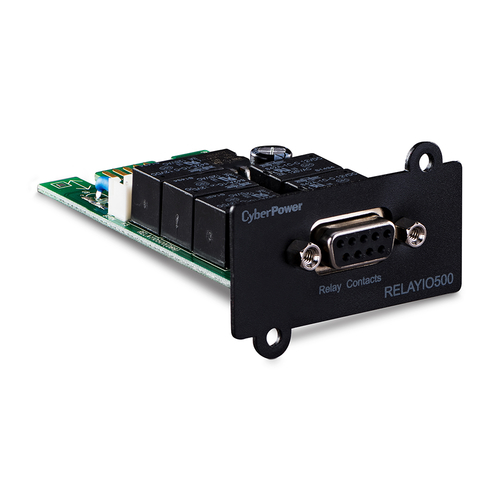

RELAYIO500 | Hardware Monitor and locally manage a Smart App UPS system
Product Overview
They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.
Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.
Remote Shutdown in Battery Mode Preserves battery power in the event of a prolonged power outage.
Interfacing with External Alarms External alarm devices can be interfaced via the DB9 port.
Three-Year Warranty Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | RELAYIO500 |
| Our part no. | 0R60200 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| Internal | Yes |
| Certification | RoHS |
| Features | |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 41.8 mm |
| Depth | 81 mm |
| Height | 14.2 mm |
| Weight | 52 g |
| Packaging data | |
| Package width | 168 mm |
| Package depth | 162 mm |
| Package height | 58 mm |
| Package weight | 160 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Connector type | D9 |
| Interface | UPS |
| Compatibility | OR Series UPS systems, PR Series UPS systems, OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL3000RTXL2UHV |
