Description

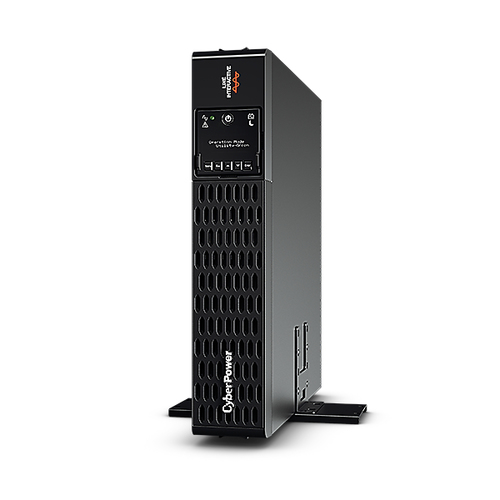

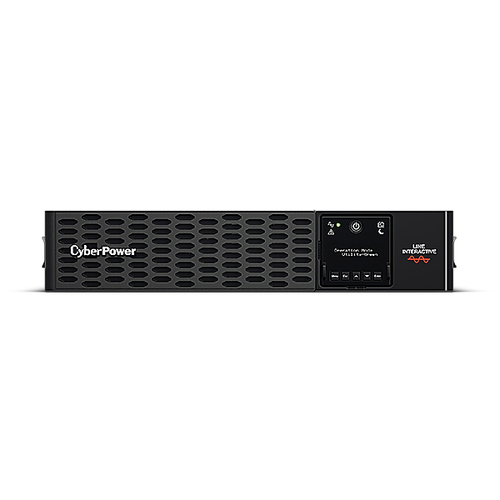

CyberPower PR2200ERT2U, Line-Interactive, 2.2 kVA, 2200 W, Pure sine, 159 V, 288 V
CyberPower PR2200ERT2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | PR2200ERT2U |
| Our part no. | 0R60214 |
| EAN | 4712856277586 |
| Category | Power & UPS › UPS |
| Weight | 33.3 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 2200 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 159 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 2430 J |
| Transfer time (Line Mode to Battery Mode) | 4 ms |
| Number of input phases | 1 |
| Power factor | 1 |
| Power Factor Correction (PFC) type | Active |
| EMI/RFI noise filtering | Yes |
| Noise level | 52.5 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Socket circuit breaker | Yes |
| Ports & interfaces | |

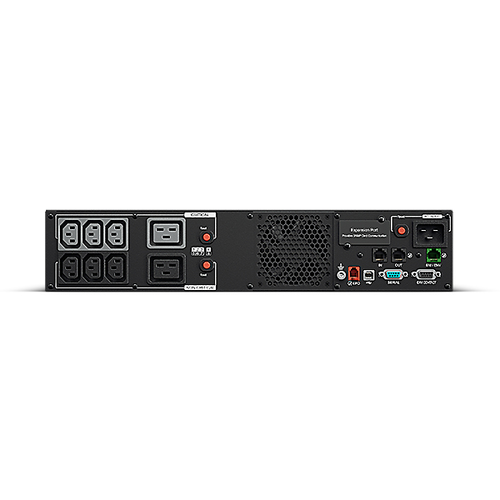

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 2 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 11.4 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Housing material | Metal |
| Rack capacity | 2U |
| Cable length | 2.4 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE , FCC Class B , UL , RCM , VCCI |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 412 mm |
| Height | 86.5 mm |
| Weight | 25.7 kg |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 530 mm |
| Package height | 275 mm |
| Package weight | 33.5 kg |
| Other features | |
| Bypass | GreenPower UPS |
