Description
CyberPower OR1000ERM1U, Line-Interactive, 1 kVA, 600 W, Sine, 165 V, 271 V
CyberPower OR1000ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

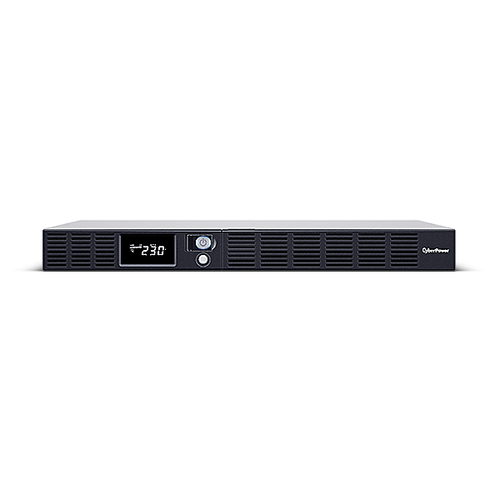

The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | OR1000ERM1U |
| Our part no. | 0R60251 |
| EAN | 4712856274301 |
| Category | Power & UPS › UPS |
| Weight | 15.4 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 600 W |
| Waveform | Sine |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 271 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 10 A |
| Surge energy rating | 810 J |
| Response time | 4 ms |
| Power factor | 0.6 |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Typical backup time at full load | 3.5 min |
| Typical backup time at half load | 14 min |
| Battery recharge time | 8 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount |
| Housing material | Metal |
| Rack capacity | 1U |
| Cable length | 1.83 m |
| Product colour | Silver |
| Display type | LCD |
| LED indicators | Operation |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, RCM |
| Packaging content | |
| Cables included | USB cable |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 389 mm |
| Height | 44 mm |
| Weight | 13.7 kg |
| Packaging data | |
| Package width | 545 mm |
| Package depth | 515 mm |
| Package height | 158 mm |
| Package weight | 17.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 8504408590 |
| Country of origin | China |
