Description

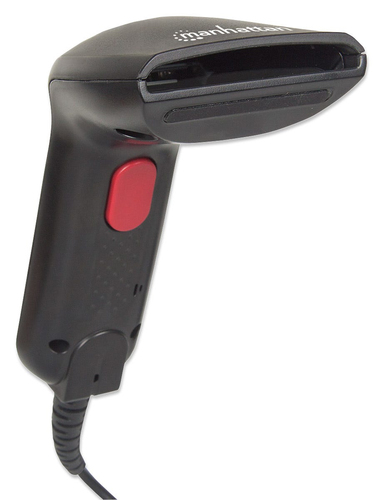

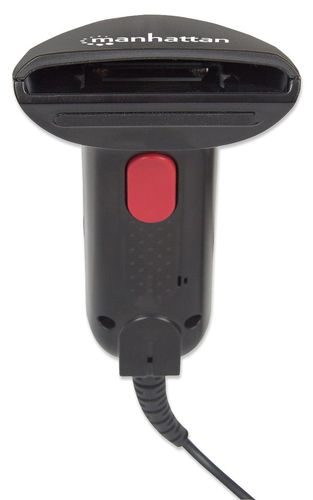

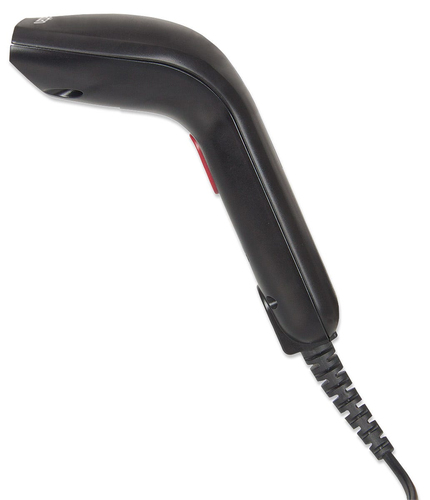

Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty, Handheld bar code reader, 1D, CCD, Codabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C., 0.127 mm, 6 cm

Improve speed, accuracy and productivity._x000D_ Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its USB cable interface integrates with most PCs without an external power supply. With a scan rate of 100 scans per second and an accurate read range of up to 60 mm (2.4 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Specifications

BrandMANHATTAN
Manufacturer part no.178488
Our part no.0Z31395
EAN0766623178488
CategoryBarcode Scanners › Fixed & Presentation Scanners
Weight0.2 kg
Scanning
TypeHandheld bar code reader
Scanner type1D
Sensor typeCCD
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C.
2D (matrix & stacked) barcodes supportedNot supported
Scanner resolution0.127 mm
Working distance6 cm
Read rate (max)100 reads/s
Light levels (direct sunlight)0 - 5000 lx
Wavelength632 nm
Maximum scan width6 cm
Ports & interfaces
Connectivity technologyWired
Standard interfacesKeyboard wedge, RS-232, USB
Cable length1.524 m
Performance
Housing materialAcrylonitrile butadiene styrene (ABS)
Product colourBlack
Certification• FCC • CE • RoHS
Power
Input voltage5 V
Power consumption80 mA
Weight & dimensions
Width80 mm
Depth180 mm
Height63.5 mm
Weight180 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 95%
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84716070
