Description

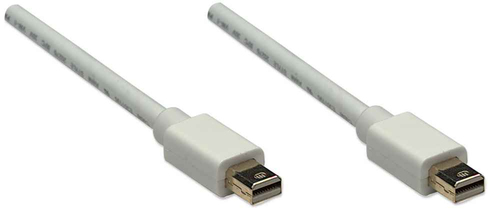

Manhattan Mini DisplayPort 1.2 Cable, 4K@60Hz, 1m, Male to Male, Bi-Directional, White, Lifetime Warranty, Equivalent to MDPMM1MW, 1 m, Mini DisplayPort, Mini DisplayPort, Male, Male, 4096 x 2160 pixels
High-definition performance for personal computing.

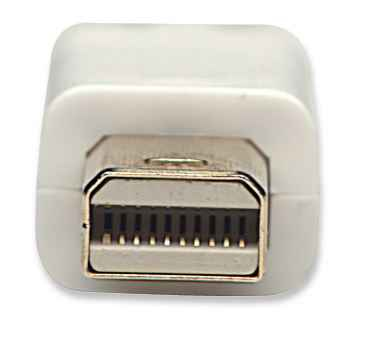

Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep colour and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 324557 |
| Our part no. | 0Z31667 |
| EAN | 0766623324557 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable length | 1 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | White |
| Magnetically shielded | Yes |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 32 |
| Data transfer rate | 14.8 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Certificates | |
| Certification | UL 20276 ISO 9002 |
| Weight & dimensions | |
| Weight | 44 g |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
