Description

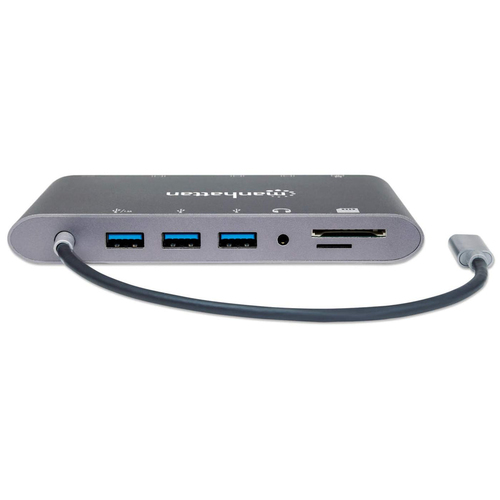

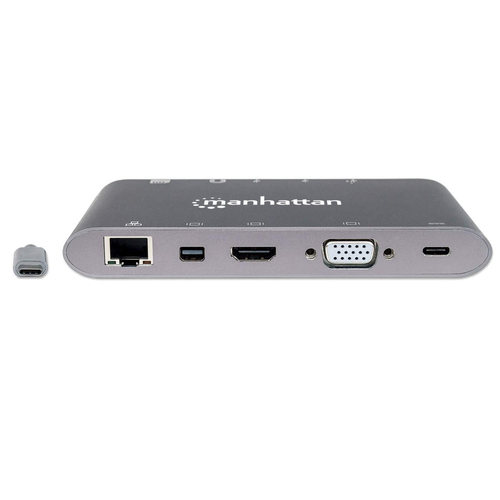

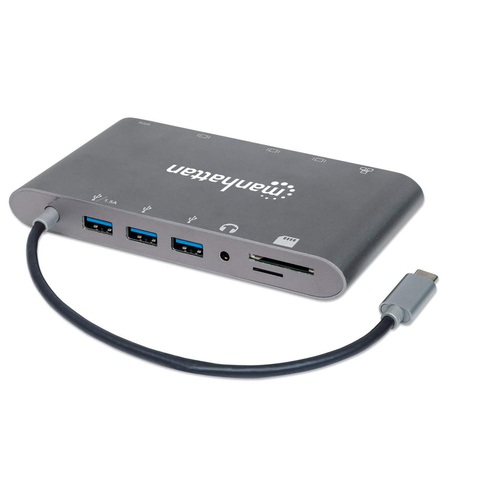

Manhattan USB-C Dock/Hub with Card Reader, Ports (x8): HDMI, Audio 3.5mm, Ethernet, Mini DisplayPort, USB-A (x3) and USB-C, With Power Delivery (60W) to USB-C Port (Note add USB-C wall charger and USB-C cable needed), All Ports can be used at the same time, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Silver, MicroSD (TransFlash), MicroSDHC, SD, SDHC, Aluminium, HDCP 1.4 CE FCC RoHS2 WEEE
Easily connect a USB Type-C device to an HDMI, Mini DP or VGA display, USB peripherals, Network and SD memory card.
The Manhattan SuperSpeed USB-C to 7-in-1 Docking Station establishes a fast, simple and convenient link between newer USB Type-C-equipped media sources (computers, tablets, Smartphones, etc.) and an existing HDMI/Mini DP/VGA display (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 (and earlier) peripheral, such as a mouse, keyboard, hub, external memory device and more, with the integrated USB-A ports, Gigabit network connection, 3.5 mm Stereo and SD and Micro SD card slot, all while charging your device through the USB-C port.
The Manhattan SuperSpeed USB-C to 7-in-1 Docking Station is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your Type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 152808 |
| Our part no. | 0Z31866 |
| EAN | 0766623152808 |
| Category | Computers & Servers › Tablet Cases |
| Weight | 0.2 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, SD, SDHC |
| Product colour | Silver |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Certification | HDCP 1.4 CE FCC RoHS2 WEEE |
| Power | |
| Power source type | USB |
| Input current | 3 A |
| Power supply | 60 W |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 137 mm |
| Height | 17 mm |
| Weight | 200 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
