Description

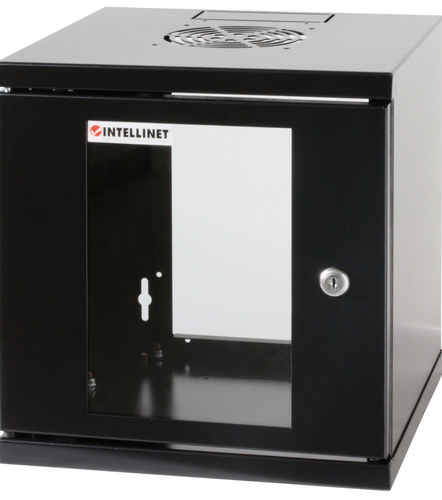

Intellinet 10" Network Cabinet - Wall Mount (Standard), 6U, 300mm Deep, Black, Assembled, Max 60kg, Suitable also for use on desk or floor, Usable Depth 265mm, Metal & Glass Door, Back Panel,Removeable Sides,Parts for wall install (eg screws/rawl plugs) not included, Wall mounted rack, 6U, 60 kg, 6.7 kg, Black
The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & grey (RAL7035). We offer you a solution for every need.
Various options include: Removable side panels (some lockable). Tempered/Toughened glass doors. Double Section, making cabling and component exchange simple.
Specifications
| Brand | IC INTRACOM |
|---|---|
| Manufacturer part no. | 711692 |
| Our part no. | 0Z31955 |
| EAN | 0766623711692 |
| Category | Docks, Bags & Racks › Racks & Cabinets |
| Weight | 7.7 kg |
| Features | |
| Rack capacity | 6U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Black |
| Material | SPCC |
| Frame type | Closed |
| Front door construction | Glass |
| Removable side panels | Yes |
| Side panels included | Yes |
| Adjustable mounting rails | Yes |
| Adjustable depth | Yes |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Weight & dimensions | |
| Size (imperial) | 25.4 cm (10") |
| Width | 300 mm |
| Depth | 300 mm |
| Height | 320 mm |
| Weight | 6.7 kg |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
