Description

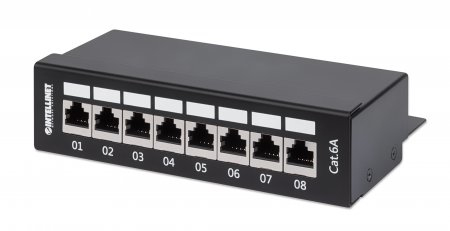

Intellinet Patch Panel, Cat6a, FTP, 8-Port, Desktop, Shielded, 90° Top-Entry Punch Down Blocks, Black, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, 10/100/1000Base-T(X), Gigabit Ethernet, 1000 Mbit/s, Gold, Cat6a
Cat6a Shielded Desktop Patch Panel — proper network connections, no rack or cabinet required The Intellinet Network Solutions Cat6a Shielded Desktop Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all compatible equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel helps the network grow and evolve. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Desktop Patch Panel adheres to current industry standards.
Specifications
| Brand | IC INTRACOM |
|---|---|
| Manufacturer part no. | 720908 |
| Our part no. | 0Z33066 |
| EAN | 0766623720908 |
| Category | Cables & Adapters › Other (1240) |
| Weight | 0.6 kg |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Ports quantity | 8 |
| Connector contacts plating | Gold |
| Cable types supported | Cat6a |
| AWG wire size | 23/24/25/26 |
| Design | |
| Product colour | Black, Grey |
| Certificates | |
| Compliance certificates | CE, RoHS, UL |
| Certification | CE FCC ISO/IEC 11801 ANSI/TIA |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | -40 - 70% |
| Storage temperature (T-T) | 10 - 90 °C |
| Weight & dimensions | |
| Width | 160 mm |
| Height | 109 mm |
| Depth | 44 mm |
| Weight | 587 g |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
