Description

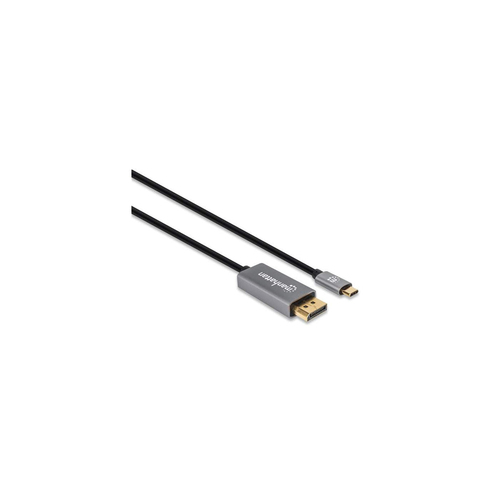

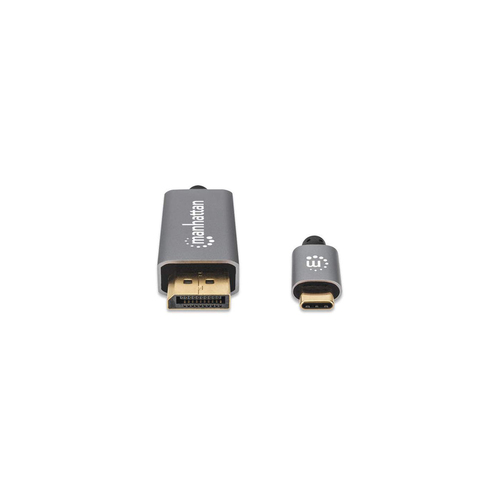

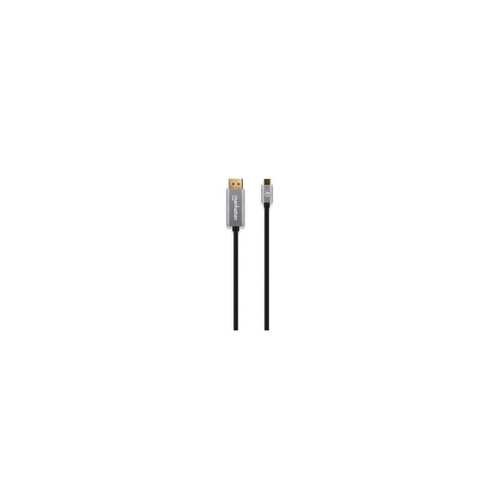

Manhattan USB-C to DisplayPort 1.4 Cable, 8K@60Hz, 3m, Not Bi-Directional, Black, Three Year Warranty, Comparable to 142-USBC-DP-8K-10F, 3 m, USB Type-C, DisplayPort, Male, Male, Straight
The DisplayPort Adapter Cable - connect a notebook, MacBook®, smartphone or tablet to a DisplayPort monitor If you own a modern laptop or MacBook, you've noticed the lack of AV ports to connect a display. The Manhattan DisplayPort Adapter Cable opens up your connectivity options to link to a DP monitor, TV or projector through your device's USB-C port. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with HDR10 for perfect contrast and colors. But it doesn’t end there – if you have a smartphone or tablet that supports DP Alt Mode, you can connect it and take content from your mobile device to the big screen. Triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 354851 |
| Our part no. | 0Z33183 |
| EAN | 0766623354851 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0.1 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 3 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Voltage rating | 300 V |
| Number of shielding layers | 3 |
| Product colour | Black, Silver |
| Conductor resistance | 10 Ω |
| Insulation resistance | 5 MΩ |
| Magnetically shielded | Yes |
| Cable shielding | Aluminium mylar foil |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | CE RoHS FCC |
| Weight & dimensions | |
| Weight | 243 g |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
