Description

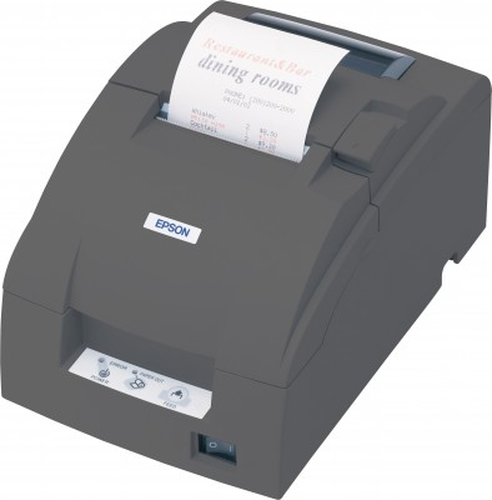

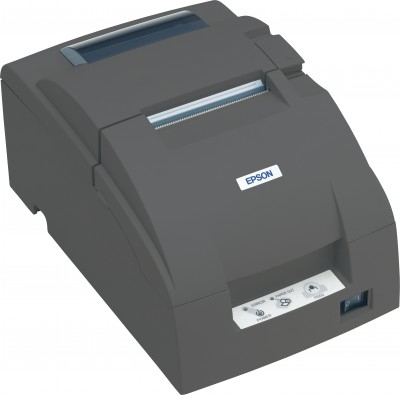

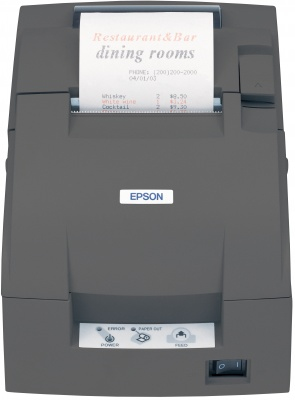

Epson TM-U220PB (057): Parallel, PS, EDG, Dot matrix, POS printer, 4 lps, 1.6 x 3.1 mm, 16 cpi, 8.3 cm
Easy-to-use impact printer
1ST IMPACT PACKAGED PRINTER * PS, NES; Parallel; Epson Cool White (ECW); Power Supply
Specifications
| Brand | EPSON |
|---|---|
| Manufacturer part no. | C31C517057 |
| Our part no. | 235A548 |
| EAN | 8715946191126 |
| Category | Label & Receipt Printers › Receipt Printers |
| Weight | 3.7 kg |
| Printing | |
| Print speed | 4 lps |
| Character size | 1.6 x 3.1 mm |
| Character density | 16 cpi |
| Print technology | Dot matrix |
| Type | POS printer |
| Paper handling | |
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 76, 69.5, 57.5 mm |
| Ports & interfaces | |
| Parallel connector | Yes |
| Connectivity technology | Wired |
| Standard interfaces | Parallel |
| Interface | Drawer kick-out, Bidirectional parallel |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Features | |
| Sound pressure level (printing) | 64 dB |
| Mean time between failures (MTBF) | 180000 h |
| Autocutter durability | 0.8 million cuts |
| Standard media sizes | 63 / 57 /47 mm |
| Country of origin | Spain |
| Safety | UL, CSA, TÜV (EN60950) |
| Design | |
| Product colour | Dark Grey |
| Power | |
| AC input voltage | 24 V |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Compatible operating systems | Windows 2000, XP, Vista |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 248 mm |
| Height | 139 mm |
| Weight | 2.5 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 302 mm |
| Package depth | 326 mm |
| Package height | 217 mm |
| Package weight | 3.79 kg |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Print technology | |
| Column capacity | 40 |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 72 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross height | 100 cm |
| Products per pallet (UK) | 108 pc(s) |
| Products per pallet layer (UK) | 12 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.25 m |
| Technical details | |
| Box contents | AC adapter, C, Main unit, Ribbon, Roll paper, User manual |
| Other features | |
| Dimensions (WxDxH) | 160 x 248 x 138.5 mm |
| Electromagnetic compatibility | VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B |
| Mean cycles between failures (MCBF) | 18000000 |
