Description

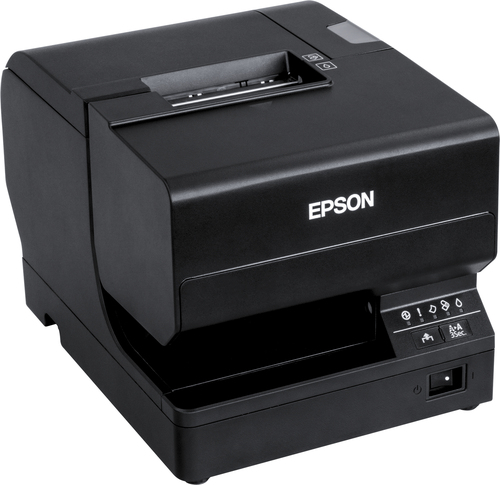

Epson TM-J7200 (301) W/O MICR,BLACK,INC PSU,EU, Inkjet, POS printer, 98 mm/sec, 98 mm/sec, 98 mm/sec, 85 mm/sec

Versatile POS printer The TM-J7200 multifunctional inkjet printer has been designed for use in retail environments where the facility to print receipts as well as slips, forms and coupons is required. This model uses inkjet technology for faster, higher quality printing, while maintaining a low TCO and backwards compatibility.

Faster, better inkjet technology Inkjet technology means that not only are printouts more detailed (600dpi compared to 180dpi for existing models), they’re around twice as fast too, with a print speed of 100mm/s (23.2lps) compared to 43mm/s (13.5lps) for previous models. Low TCO Epson has managed to incorporate inkjet technology into this new model while retaining a similar low total cost of ownership to previous dot matrix units.

Simple maintenance The new ink cartridges have an easy-install design ideal for busy retail counters, as well as drop-in paper roll for quick loading, and the ink formulation used offers better water and light resistance than dot matrix, so receipts and documents will last longer.

Backwards compatible To make upgrading from existing models incredibly easy, the TM-J7200 is fully backwards-compatible with the TM-J7000 and has exactly the same footprint, so it can simply be swapped in. However to integrate smoothly with the latest ePOS systems, the new model offers both USB and Ethernet connection options.

Specifications

BrandEPSON
Manufacturer part no.C31CF69301
Our part no.235N076
EAN8715946639031
CategoryLabel & Receipt Printers › Receipt Printers
Weight7.1 kg
Printing
ColourNo
Print speed98 mm/sec
Print speed (graphic)98 mm/sec
Print speed (receipt)98 mm/sec
Print speed (slip)85 mm/sec
Printing charactersText, Graphic, Barcode
Character setsANK
Alphanumeric memory95
Print technologyInkjet
TypePOS printer
Paper handling
Supported paper width58 - 83 mm
Media thickness0.06 - 0.09 mm
Maximum paper size (slip)230 x 297 mm
Ports & interfaces
USB portYes
USB 2.0 ports quantity1
USB connectorUSB Type-B
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
InterfaceUSB 2.0, Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out, Customer Display
Network
Ethernet LANYes
Wi-FiNo
Features
Sound pressure level (printing)55 dB
Mean time between failures (MTBF)180000 h
Half-cutterNo
Autocutter durability1.5 million cuts
Country of originIndonesia
Printer receipt unit life3700000000 lines
Printer slip unit life5000000 lines
SafetyTÜV, TÜV (EN60950-1)
CertificationCE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
Design
Product colourBlack
Power
Power source typeDC
AC input voltage24 V
Power consumption (standby)70000 mA
Operational conditions
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-20 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)20 - 85%
Weight & dimensions
Width195 mm
Depth260 mm
Height188 mm
Weight5.1 kg
Packaging data
Cables includedAC
Quantity per pack1 pc(s)
Package width297 mm
Package depth390 mm
Package height305 mm
Package weight7.2 kg
Logistics data
Pallet weight (UK)0 g
Harmonized System (HS) code84433210
Products per pallet48 pc(s)
Products per pallet layer8 pc(s)
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height171 cm
Pallet gross weight0 g
Products per pallet (UK)60 pc(s)
Products per pallet layer (UK)10 pc(s)
Pallet width (UK)100 cm
Pallet length (UK)120 cm
Pallet height (UK)171 cm
Technical details
Font stylesANK
Box contentsCD Manual, Ink Cartridge, PS-180, Power cable, Power switch cover, Roll paper, Setup guide, USB cable, User manual (CD)
Voltage24 V
Safety warningContains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction.<br>Always follow the information on the product label.
Other features
Paper dimensions58 mm - 83 mm
Mean cycles between failures (MCBF)5000000
