Description

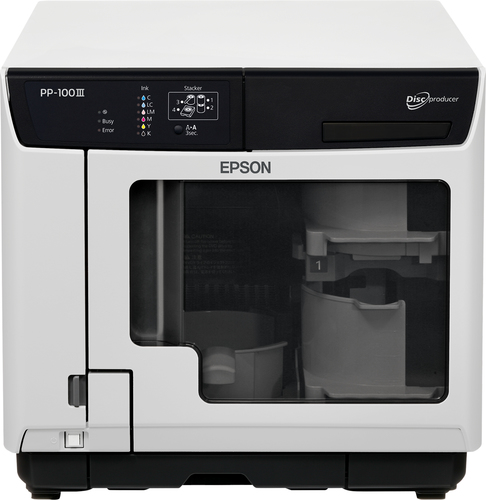

Epson Discproducer PP-100III, 11.6 cm, 119 - 70 mm, 4.5 cm, 50 - 18 mm, 45 - 116 mm, 1440 x 720 DPI
High-volume disc publisher Epson's Discproducer PP-100III is a Blu-ray, DVD and CD publisher, combining proven features with design enhancements. The Discproducer's archival-grade Blu-ray drives (Pioneer PR1 series) are both accurate and reliable. And, with a USB 3.0 SuperSpeed interface, it can fully burn and print up to 100 discs in one single operation.
Productivity With a high-capacity output, the PP-100III can burn up to: 30 CDs/hour (600MB),15 DVDs/hour (3.8GB), 8.5 BDs/hour (23.8GB) and printing only, 65/45 discs/hour (fast/fine mode). For reliable and secure operation, the unit is dust-proof and fully automated. Its patented AcuGrip robotic arm ensures only one disc is grabbed at a time, so production runs can be left to complete unattended.
Low TCO Offering long-term cost-effectiveness, the maintenance cartridge and drives can be replaced by the user, extending the PP-100III working lifespan to more than 75,000 discs. The six-cartridge individual ink system keeps the cost per produced disc low, and the front-facing LED display allows easy monitoring of ink levels.
Space-Saving Compact and fully stackable, the Discproducer also has valuable space-saving benefits for organisations with large-scale disc-publishing needs.
Software Total Disc Maker 7.0 software is included. This includes powerful advanced functions such as the 'read back' file location tool, for searching within a full stack of 50 discs. In addition, the 'merge print' feature prints individual database content onto each disc surface enabling easier batch production.
Peace of mind Optical discs are a dependable format for long-term storage - withstanding magnetic fields, water, humidity or dust, they provide peace of mind that data is secure. It’s also future-friendly, as even the newest drives are still able to read the very first CDs.
Specifications
| Brand | EPSON |
|---|---|
| Manufacturer part no. | C11CH40021 |
| Our part no. | 235Q504 |
| EAN | 8715946669885 |
| Category | Label & Receipt Printers › Other (5810) |
| Weight | 27.3 kg |
| Technical details | |
| Capacity | 50 discs |
| Capacity (batch mode) | 100 discs |
| Output capacity | 5 discs |
| Interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Ink type | Dye Ink |
| Optical disc diameter | 120 mm |
| Inner diameter | 1.5 cm |
| Thickness | 1 mm |
| Media types supported | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, BD-R, BD-R DL |
| Publishing speed (CD) | 30 discs/hour |
| Publishing speed (DVD) | 15 discs/hour |
| Publishing speed (Blu-ray) | 9 discs/hour |
| Printing colours | Light Cyan, Light magenta, Yellow, Magenta, Cyan, Black |
| Number of printing colours | 6 |
| Number of CD/DVD drives | 2 |
| Product colour | Black, White |
| Box contents | Individual Ink Cartridges, Main unit, Setup guide, Software (CD), USB cable, User manual (CD), Warranty Documents |
| Number of colours | 6 colours |
| Print direction | Bidirectional |
| Print head nozzles | 180 Nozzles Black, 180 Nozzles per Color |
| Print head | Micro Piezo |
| Print speed | 65 Discs/h (fast mode), 45 Discs/h (quality mode) |
| Country of origin | China |
| Safety warning | Contains 1,2-benzisothiazol-3(2H)-one. May produce an allergic reaction.<br>Contains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction.<br>Always follow the information on the product label. |
| Power consumption | 52 Watt, 27 Watt (standby) |
| Noise level | 45 dB |
| Quantity per pack | 1 pc(s) |
| Printing | |
| Outside diameter print | 11.6 cm |
| Outside diameter print range | 119 - 70 mm |
| Inside diameter print | 4.5 cm |
| Inside diameter print range | 50 - 18 mm |
| Guaranteed print area | 45 - 116 mm |
| Print quality | |
| Print resolution (speed mode) | 1440 x 720 DPI |
| Print resolution (quality mode) | 1440 x 1440 DPI |
| Writing speed | |
| CD write speed | 40x |
| DVD-R write speed | 8x |
| BD-R write speed | 8x |
| Software | |
| Bundled software | Epson Total Disc Maker |
| Weight & dimensions | |
| Dimensions (WxDxH) | 377 x 493 x 348 mm |
| Weight | 24 kg |
| Package width | 528 mm |
| Package depth | 720 mm |
| Package height | 620 mm |
| Package weight | 30.1 kg |
| System requirements | |
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP |
| Power | |
| Power consumption (typical) | 52 W |
| Power consumption (standby) | 27 W |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet (UK) | 6 pc(s) |
| Pallet weight (UK) | 0 g |
