Description

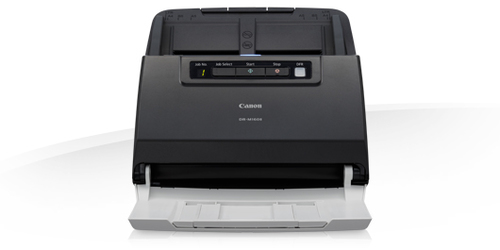

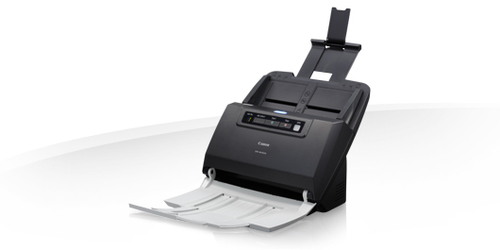

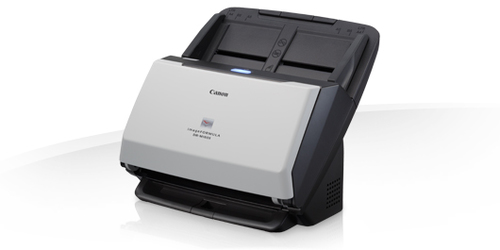

Canon imageFORMULA DR-M160II Compact A4 Document scanner, 216 x 3000 mm, 600 x 600 DPI, 24 bit, 8 bit, 60 ppm, 60 ppm
Productive, ultra-compact scanner ideal for reliable paper-intensive scanning.
The imageFORMULA DR-M160II is a productivity-boosting desktop scanner. With a robust design, fast speed and reliable media handling, it is ideal for paper-intensive scanning.
Benefits
- Class-leading colour scanning speeds of up to 120ipm - Robust design to handle up to 7,000 scans/day - Windows, Mac and Linux compatible - Compactly built and highly productive - Supreme paper-handling reliability includes paper separation retry
Specifications
| Brand | CANON |
|---|---|
| Manufacturer part no. | 9725B003 |
| Our part no. | 2420T92 |
| EAN | 4528472106274 |
| Category | Cameras & Imaging › Other (1701) |
| Weight | 4.8 kg |
| Scanning | |
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Film scanning | No |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | Black |
| Built-in display | No |
| Performance | |
| Sensor type | CMOS CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 7000 pages |
| Scan drivers | ISIS, TWAIN |
| Input capacity | |
| Standard input capacity | 60 sheets |
| Paper handling | |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 27 W |
| Power consumption (standby) | 1.8 W |
| Power consumption (off) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 606 mm |
| Height | 366.4 mm |
| Weight | 3.2 kg |
| Packaging content | |
| Drivers included | Yes |
| Bundled software | CapturePerfect CaptureOnTouch eCopy PDF Pro Office Kofax VRS (with AIPE) Plug-in: EMC Captiva Cloud Runtime Controls |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
