Description
APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13, 2U, China, IEC 60320 C20, 230 V, 230 V, RoHS, REACH, WEEE

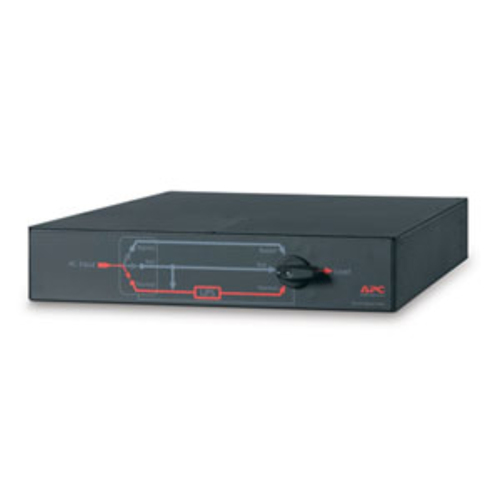

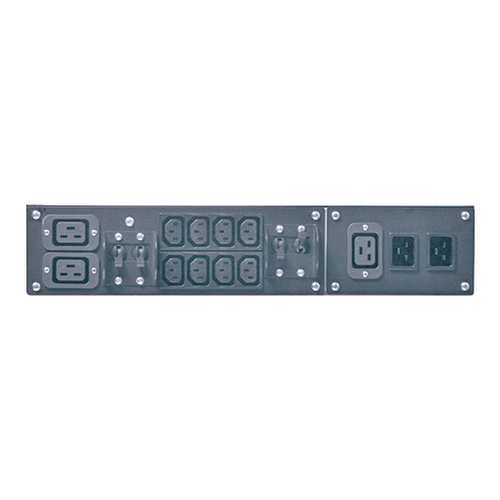

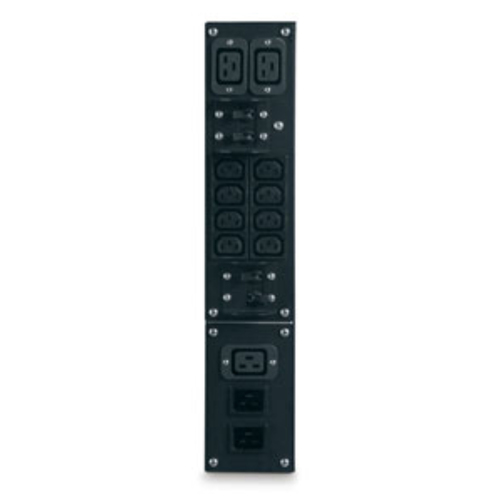

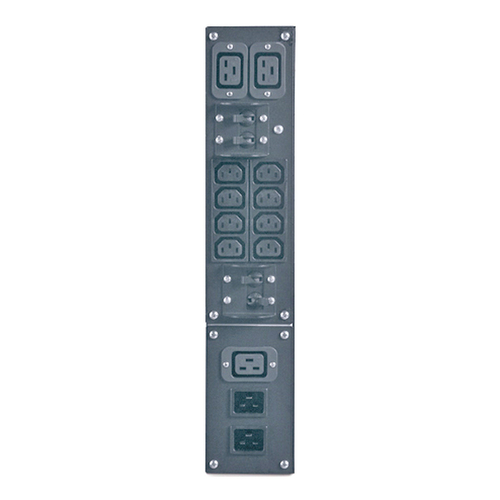

The APC SBP5000RMI2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (8) IEC C13, (2) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SBP5000RMI2U |
| Our part no. | 2701911 |
| EAN | 0731304212591 |
| Category | Power & UPS › Other (0151) |
| Weight | 22.2 kg |
| Features | |
| Rack capacity | 2U |
| Country of origin | China |
| Ports & interfaces | |
| Input connections | IEC 60320 C20 |
| Power | |
| AC input voltage | 230 V |
| AC output voltage | 230 V |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CSA; GOST |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 660 mm |
| Height | 89 mm |
| Weight | 11.4 kg |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 7a19864b-8bf5-40ac-85e8-7678b0910185 |
| Mounting | front |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Customs product code (TARIC) | 8537109899 |
