Description

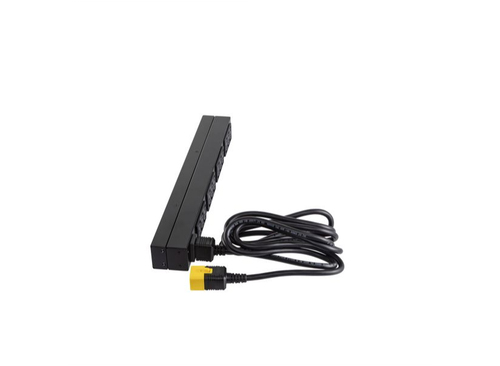

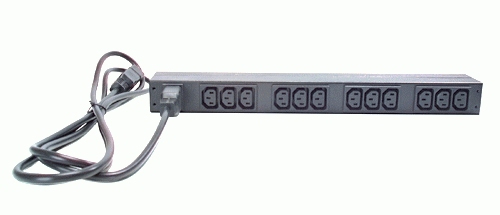

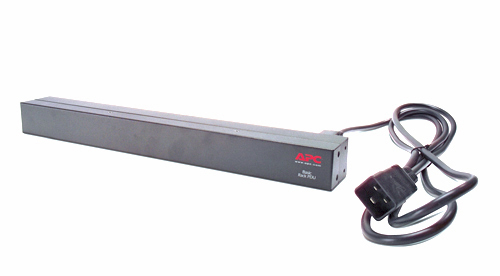

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 12 AC outlet(s)
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP9565 |
| Our part no. | 2701928 |
| EAN | 0731304213055 |
| Category | Power & UPS › PDUs |
| Weight | 2.3 kg |
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C20 |
| Output connections | (12) IEC 320 C13 |
| Features | |
| Cable length | 2.5 m |
| Power | |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Certificates | |
| Certification | cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 57.2 mm |
| Height | 44.5 mm |
| Weight | 2.05 kg |
| Packaging data | |
| Package weight | 3.64 kg |
| Package width | 464 mm |
| Package depth | 229 mm |
| Package height | 70 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 55.19 |
