Description

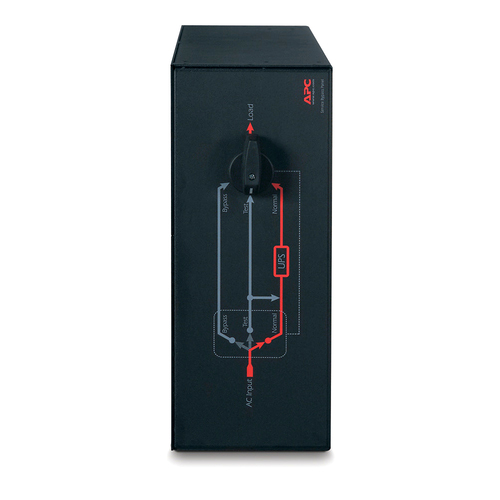

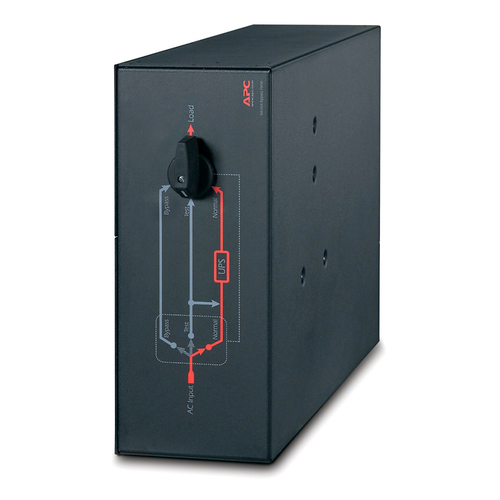

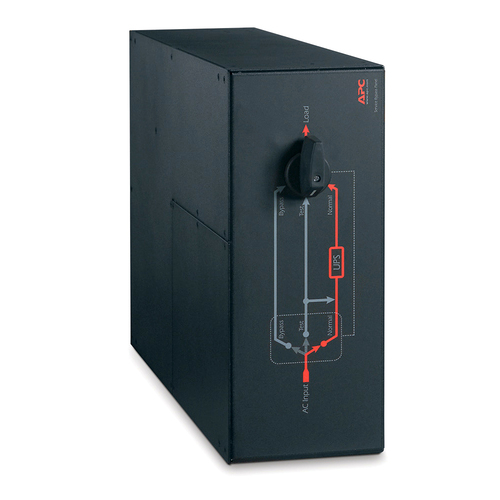

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output, Bypass switch, Rack-mount, Black, 4U, CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778, 20000 VA
The APC Service Bypass Panel support voltage of 230V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SBP16KRMI4U |
| Our part no. | 2702052 |
| EAN | 0731304212652 |
| Category | Power & UPS › UPS Cables & Accessories |
| Weight | 33 kg |
| Features | |
| Product type | Bypass switch |
| Mounting type | Rack-mount |
| Product colour | Black |
| Rack capacity | 4U |
| Compatibility | CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 |
| Power | |
| Load capacity | 20000 VA |
| Input voltage | 230 V |
| Input frequency | 50/60 Hz |
| Number of phases | 1 |
| Maximum total current draw per phase | 100 A |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CSA; GOST |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4500 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 673 mm |
| Height | 178 mm |
| Weight | 21.8 kg |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 305 mm |
| Package weight | 31.8 kg |
| Technical details | |
| Sustainable packaging | No |
| SCIP number | 7a19864b-8bf5-40ac-85e8-7678b0910185 |
| Mounting | front |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Country of origin | China |
| Customs product code (TARIC) | 8537109899 |
| Harmonized System (HS) code | 85079080 |
