Description

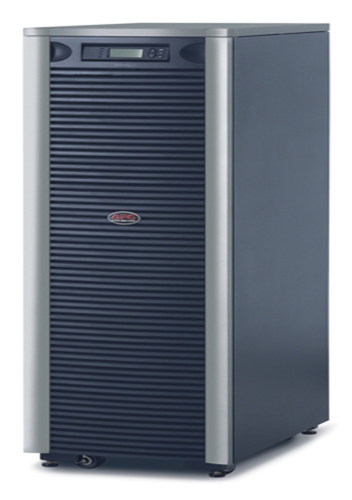

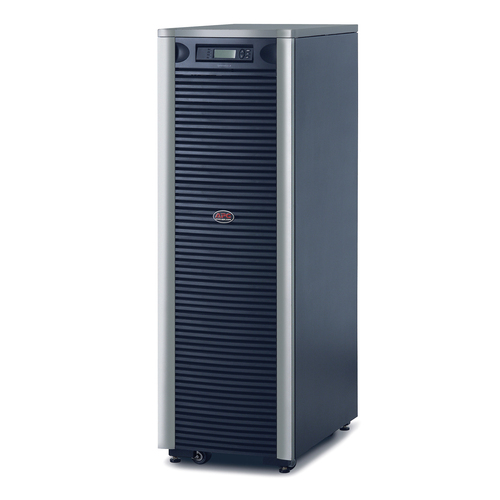

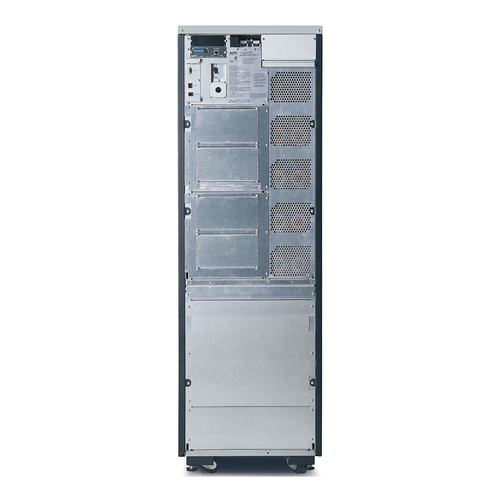

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V, 16 kVA, 11200 W, Sine, 240,220 V, 220,380,400,415 V, Hardwire
"High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks."
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SYA16K16IXR |
| Our part no. | 2702317 |
| Category | Power & UPS › UPS |
| Weight | 543 kg |
| Features | |
| Output power capacity | 16 kVA |
| Output power | 11200 W |
| Waveform | Sine |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 240,220 V |
| Three-phase input voltage supported | 220,380,400,415 V |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Battery | |
| Battery replacement accessibility | End-user |
| Typical backup time at full load | 24.7 min |
| Typical backup time at half load | 55.4 min |
| Battery recharge time | 7.5 h |
| Replacement battery cartridge | SYBT5 |
| Design | |
| Product colour | Black, Silver |
| Compatibility | C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Power | |
| Input current (max) | 73 A |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 726 mm |
| Height | 1516 mm |
| Weight | 503.6 kg |
| Packaging data | |
| Package weight | 535.5 kg |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 48644.1128599416 |
| Country of origin | Philippines |
| Other features | |
| I/O ports | (1) Hard Wire 3-wire (H N + G) Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
| Battery type | Lead-Acid |
| Interface | DB-9 RS-232,Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 483 x 726 x 1516 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 220: 230, 240 |
| Nominal input voltage | 230-400 V |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Output voltage | 220 V |
| Mounting | front |
| Package dimensions (WxDxH) | 599 x 997 x 1880 mm |
