Description
APC Symmetra LX 8kVA Scalable to 16kVA N+1, Tower 208/240V, 8 kVA, 6400 W, 62 dB, Sealed Lead Acid (VRLA), 254.1 min, 528.4 min
Symmetra® LX
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Symmetra LX
-6400 Watts. -8000 VA,Input 208V. -Output 120V, 208V. -Interface Port DB-9 RS-232. -Smart-Slot. -Extended runtime model.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SYA8K16P |
| Our part no. | 2703413 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| Output power capacity | 8 kVA |
| Output power | 6400 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 62 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 254.1 min |
| Typical backup time at half load | 528.4 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 219.6 kg |
| Packaging data | |
| Package weight | 236.82 g |
| Other features | |
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
| Output voltage note | 120 - 208 / 120 - 240 |
| Nominal input voltage | 208 V |

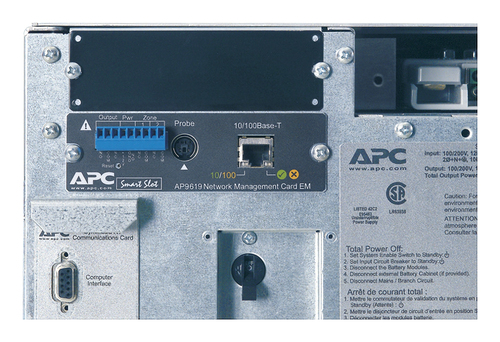

| Communication options, cards | AP9619 |
| Communication options, slot | SmartSlot |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
