Description

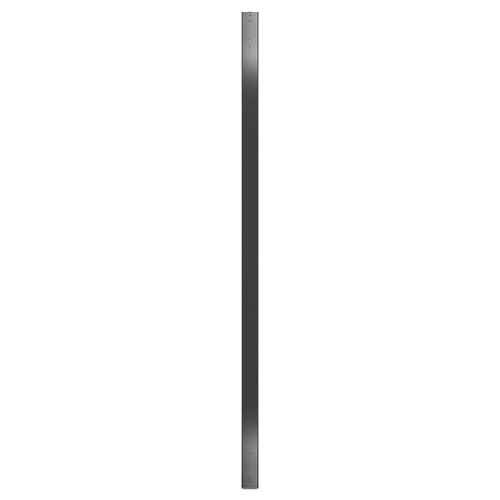

APC Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7541 |
| Our part no. | 2703474 |
| EAN | 0731304225560 |
| Category | Power & UPS › PDUs |
| Weight | 8.6 kg |
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | NEMA L6-30P |
| Input connection type | NEMA L6-30P |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 200; 208; 230 V |
| AC input frequency | 50-60 Hz |
| Maximum current | 30 A |
| Output voltage | 200 V; 208 V |
| Load capacity | 4992 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 24 A |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15240 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.57 kg |
| Packaging content | |
| Cables included | Power |
| Packaging data | |
| Package weight | 6.48 kg |
| Package width | 127 mm |
| Package depth | 152 mm |
| Package height | 2121 mm |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 3936.6696350091 |
