Description

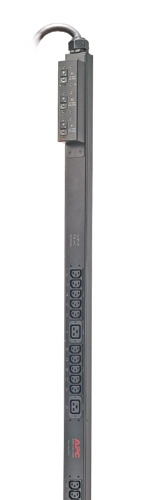

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 10ft input cord, Black, Hubbell CS8365C, 30 x IEC 320 C13, 6 x IEC 320 C19, 3.05 m, 208 V, 208 V
APC Basic Rack PDU , Input: 208V 3PH , Input Connections: Compatible With Hubbell CS8365C , Cord Length: 10 feet ( 3.05 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7598 |
| Our part no. | 2703503 |
| EAN | 0731304226864 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| Product colour | Black |
| Ports & interfaces | |

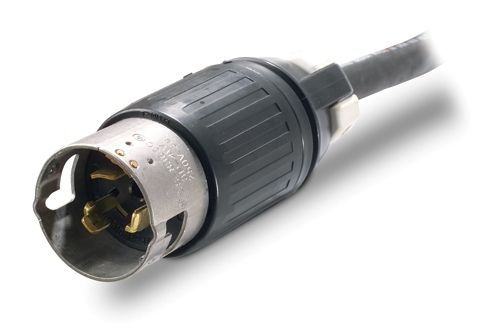

| Input connection type | Hubbell CS8365C |

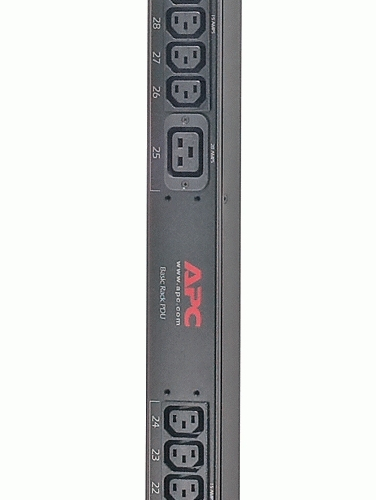

| Output connections | 30 x IEC 320 C13, 6 x IEC 320 C19 |
| Features | |
| Cable length | 3.05 m |
| Power | |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Certificates | |
| Certification | cUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 89 mm |
| Height | 1778 mm |
| Weight | 8.79 kg |
| Packaging data | |
| Package weight | 11.9 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2108 mm |
