Description

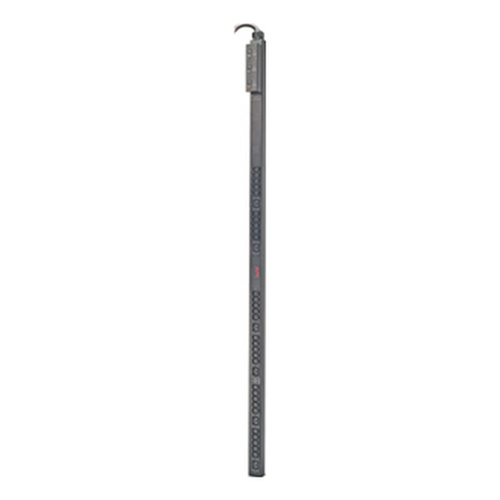

APC NetShelter Basic Rack PDU, Zero U, 12.5kW, 208V, 30 C13 and 6 C19 outlet, 3ft input Cord, Black, Hubbell CS8365C, -(30) IEC 320 C13. -(6) IEC 320 C19. , 0.91 m, 208 V, 208 V
-Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit. -Multi-branch power input. -Toolless mounting capability. -Vertical mounting capability.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7568 |
| Our part no. | 2703522 |
| EAN | 0731304226833 |
| Category | Power & UPS › PDUs |
| Weight | 10.1 kg |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | Hubbell CS8365C |
| Output connections | -(30) IEC 320 C13. -(6) IEC 320 C19. |
| Features | |
| Cable length | 0.91 m |
| Power | |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Load capacity | 12500 VA |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Certificates | |
| Certification | cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 89 mm |
| Height | 1778 mm |
| Weight | 6.95 kg |
