Description

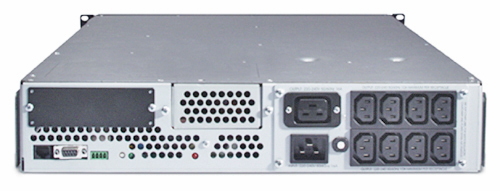

APC Smart UPS 3000VA 230V RM 2U, 3 kVA, 2700 W, 151 V, 302 V, 50/60 Hz, 230 V
APC Global Deployment, 2700 Watts / 3000 VA, Input 230V / Output 230V , Interface Port DB-9 RS-232, Smart-Slot, USB , Rack Height 2 U
Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable
Standard Lead Time: Usually Ships within 2 Weeks
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SUA3000R2IX38 |
| Our part no. | 2703978 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 480 J |
| Efficiency | 96% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 47 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | CE, UL 1778. |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 660 mm |
| Height | 89 mm |
| Weight | 43.6 kg |
| Packaging data | |
| Package weight | 56.8 kg |
| Other features | |
| Dimensions (WxDxH) | 483 x 660 x 89 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Package dimensions (WxDxH) | 622 x 980 x 254 mm |
