Description

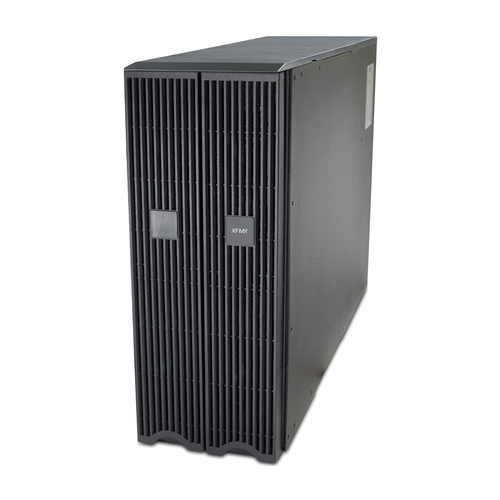

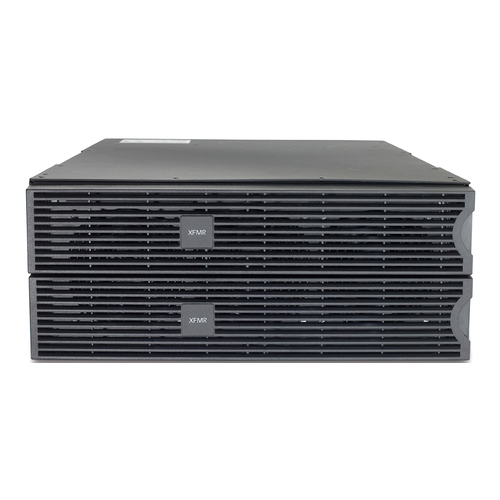

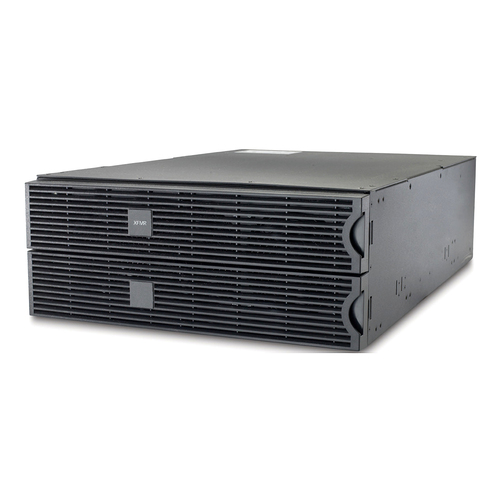

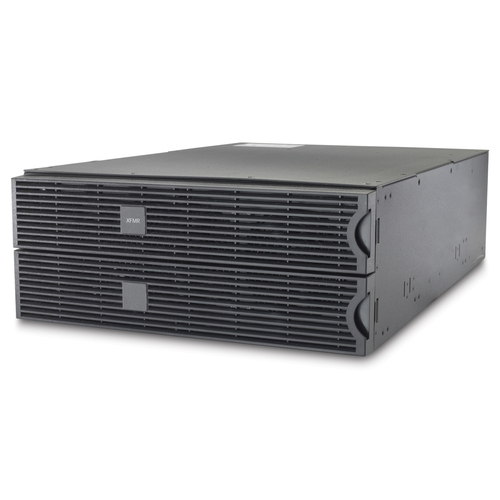

APC WW 10KVA Isolation Transformer, Black, Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), 1x Hard Wire 3-wire (H N + G), 230 V, 230 V, 10000 VA
The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | APTF10KW01 |
| Our part no. | 2705109 |
| EAN | 0731304242208 |
| Category | Power & UPS › Other (0151) |
| Weight | 125.5 kg |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G) |
| Output connections | 1x Hard Wire 3-wire (H N + G) |
| Power | |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Load capacity | 10000 VA |
| Maximum input current per phase | 60 A |
| Maximum total current draw per phase | 60 A |
| Certificates | |
| Certification | C-tick,CE,CSA,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3-3,GOST,UL Listed,VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 749 mm |
| Height | 175 mm |
| Weight | 100 kg |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 10587.81 |
