Description

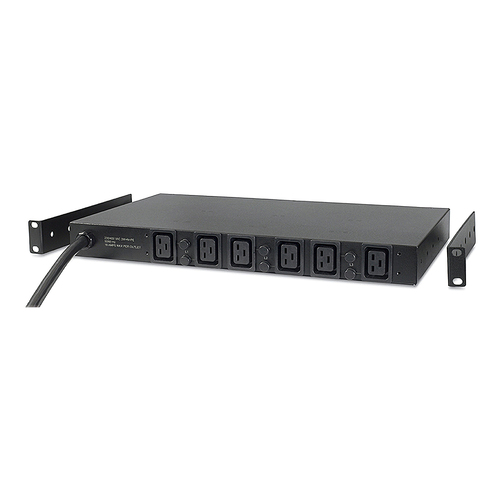

APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19, 1U, Black, Hubbell CS8365C, (6) IEC 320 C19, 2.4 m, 208 3 phases

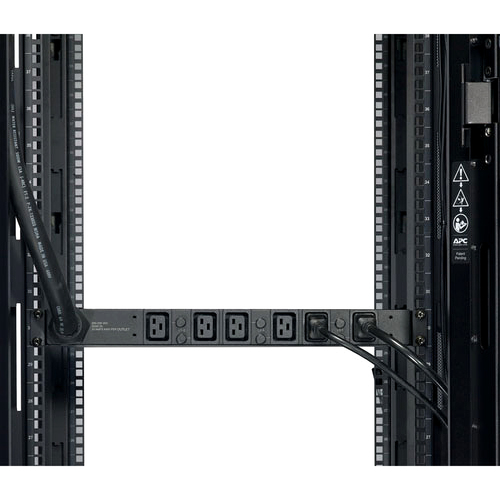

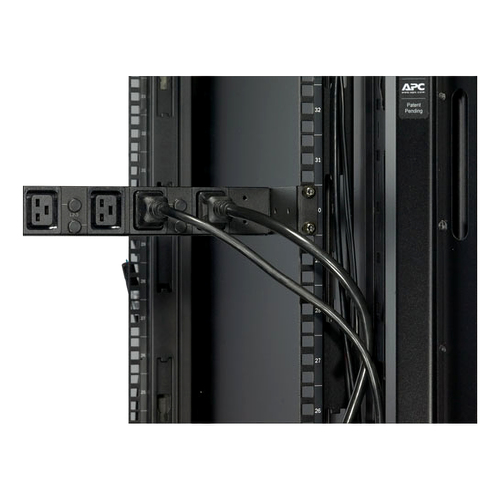

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7516 |
| Our part no. | 2705287 |
| EAN | 0731304232674 |
| Category | Power & UPS › PDUs |
| Weight | 10.6 kg |
| Design | |
| Rack capacity | 1U |
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | Hubbell CS8365C |
| Output connections | (6) IEC 320 C19 |
| Features | |
| Cable length | 2.4 m |
| Power | |
| Nominal input voltage | 208 3 phases |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 200 V; 208 V |
| Number of phases | 3 |
| Maximum input current per phase | 50 A |
| Maximum total current draw per phase | 40 A |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; METI Denan; UL listed |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 437 mm |
| Depth | 254 mm |
| Height | 44 mm |
| Weight | 7.98 kg |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 23327.5911925625 |
