Description

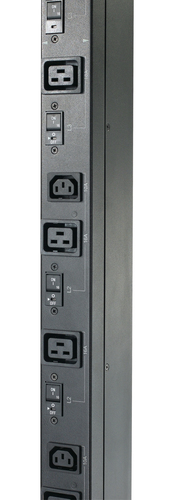

APC Rack PDU Basic Zero U, Basic, 0U, Vertical, Black, 9 AC outlet(s), C13 coupler, C19 coupler
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation guide, Toolless Mounting Kit.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7555A |
| Our part no. | 2705288 |
| EAN | 0731304251255 |
| Category | Power & UPS › PDUs |
| Weight | 7.1 kg |
| Design | |
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 32A 3P+N+PE |
| Output connections | - (3) IEC 320 C13 - (6) IEC 320 C19 |
| Features | |
| Cable length | 1.83 m |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Load capacity | 22080 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 22000 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 88 mm |
| Height | 927 mm |
| Weight | 4.75 kg |
| Packaging data | |
| Package weight | 6.25 kg |
| Package width | 286 mm |
| Package depth | 70 mm |
| Package height | 1054 mm |
