Description
APC PDM2332IEC-3P30R-1, Black, Blue, IEC 309 32A 3P+N+PE, (3) IEC 309 32A, 400 V, 50 Hz, 400 V

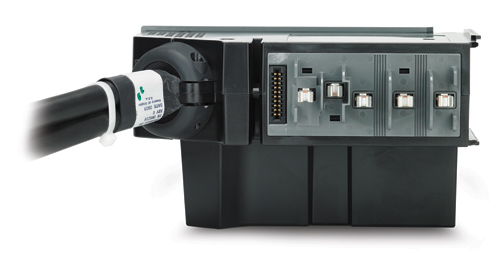

A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.
- Includes: Installation guide - Standard Lead Time: Usually Ships within 4 Weeks
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | PDM2332IEC-3P30R-1 |
| Our part no. | 2706678 |
| EAN | 0731304265641 |
| Category | Power & UPS › UPS Cables & Accessories |
| Weight | 7.9 kg |
| Design | |
| Product colour | Black, Blue |
| Ports & interfaces | |
| Input connection type | IEC 309 32A 3P+N+PE |
| Output connections | (3) IEC 309 32A |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 Hz |
| Nominal output voltage | 400 V |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 406 mm |
| Height | 254 mm |
| Weight | 7.7 kg |
