Description

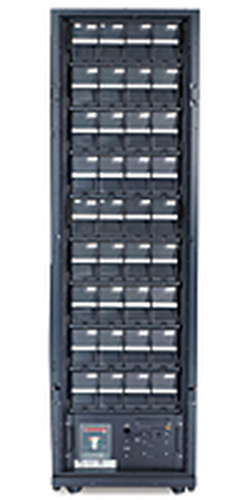

APC PDUM160H-B, Hard Wire 5-wire (3PH + N + G), 2x Hard Wire 5-wire (3PH + N + G), 400 V, 160000 VA, 295 A, CE, FCC 15 A
InfraStruXure Central compatible Enables centralized management via APC InfraStruXure® Central.
Smallest footprint Minimizes your real estate expenses
Top and bottom cable entry (standard) Flexibility that allows the customer to decide - and at no extra cost.
UL-listed Touch-safe backplane Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Multiple distribution options Superior design flexibility enables a wide range of customer requirements to be addressed.
Toolless installation of breakers Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
Safety Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | PDUM160H-B |
| Our part no. | 2706934 |
| EAN | 0731304257608 |
| Category | Power & UPS › UPS Cables & Accessories |
| Weight | 443.6 kg |
| Ports & interfaces | |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Output connections | 2x Hard Wire 5-wire (3PH + N + G) |
| Power | |
| Nominal input voltage | 400 V |
| Load capacity | 160000 VA |
| Maximum input current per phase | 295 A |
| Certificates | |
| Certification | CE, FCC 15 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 411.8 kg |
| Packaging data | |
| Package weight | 444.6 kg |
| Package width | 848 mm |
| Package depth | 1210 mm |
| Package height | 2150 mm |
