Description

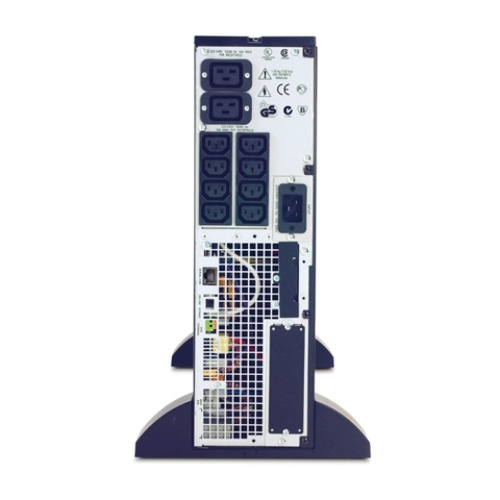

APC Smart-UPS RT 3000VA, 230V, 8x IEC 60320 C13 & 3x IEC Jumpers & 2x IEC 60320 C19, Double-conversion (Online), 3 kVA, 2100 W, Sine, 160 V, 280 V
High density, double-conversion on-line power protection with scalable runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SURT3000XLIX554 |
| Our part no. | 2707249 |
| EAN | 0731304268895 |
| Category | Power & UPS › UPS |
| Weight | 65 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2100 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| AC outlets quantity | 13 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC140 |
| Design | |
| Form factor | Rackmount/Tower |
| Cable length | 2.4 m |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | EN/IEC 62040-1-1, EN/IEC 62040-2, GOST, VDE |
| Packaging content | |
| Cables included | RS-232 |
| Manual | Yes |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 660 mm |
| Height | 432 mm |
| Weight | 54.7 kg |
| Packaging data | |
| Package width | 603 mm |
| Package depth | 980 mm |
| Package height | 347 mm |
| Package weight | 63.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4310.05 |
