Description

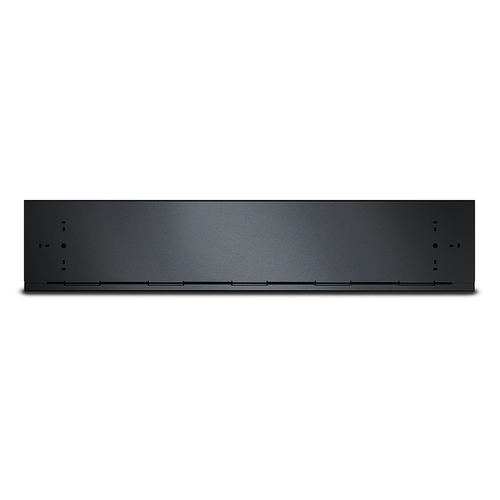

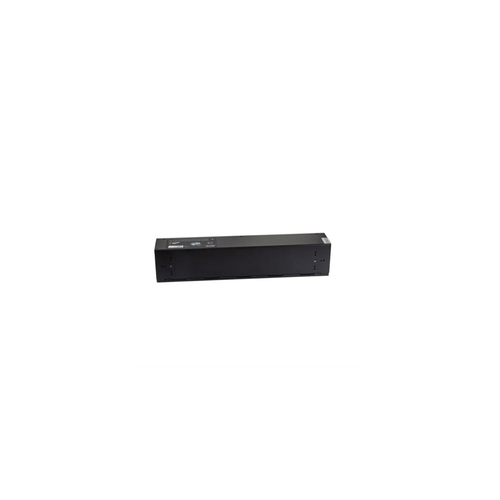

APC Service Bypass PDU, 230V 10AMP W/ (6) IEC C13, 2U, India, 2 m, IEC 60320 C14, 10 A, 230 V
The APC Service Bypass Panel support voltage of 230V. It includes 6 IEC 60320 C13 and 1 IEC Jumpers outlets. It features a 2U rack-mount design and is rack mountable. The unit includes rack mounting brackets and user manual.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SBP1500RMI |
| Our part no. | 2709057 |
| EAN | 0731304263593 |
| Category | Power & UPS › PDUs |
| Weight | 3.1 kg |
| Features | |
| Rack capacity | 2U |
| Country of origin | India |
| Cable length | 2 m |
| Ports & interfaces | |
| Input connections | IEC 60320 C14 |
| Power | |
| Maximum current | 10 A |
| AC input voltage | 230 V |
| AC output voltage | 230 V |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | REACH, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 76 mm |
| Height | 89 mm |
| Weight | 2 kg |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 7a19864b-8bf5-40ac-85e8-7678b0910185 |
| Mounting | front |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Customs product code (TARIC) | 8536699099 |
