Description

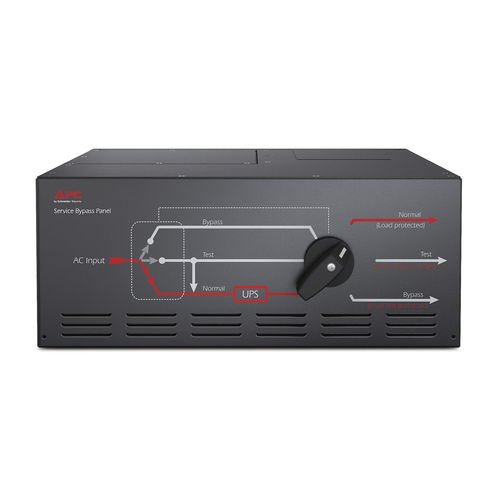

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output, 20 kVA, 200 V, 240 V, 50/60 Hz, 125 A, Hard Wire 5-wire (3PH + N + G)
The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SBP20KP |
| Our part no. | 2709280 |
| EAN | 0731304266952 |
| Category | Power & UPS › PDUs |
| Weight | 30.3 kg |
| Features | |
| Output power capacity | 20 kVA |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Maximum current | 125 A |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Design | |
| Form factor | Tower |
| Rack capacity | 4U |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4500 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainable packaging | No |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CSA; GOST |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 554 mm |
| Height | 178 mm |
| Weight | 19.3 kg |
| Packaging data | |
| Package weight | 31.4 kg |
| Logistics data | |
| Customs product code (TARIC) | 8536508000 |
| Harmonized System (HS) code | 85078000 |
| Country of origin | China |
| Other features | |

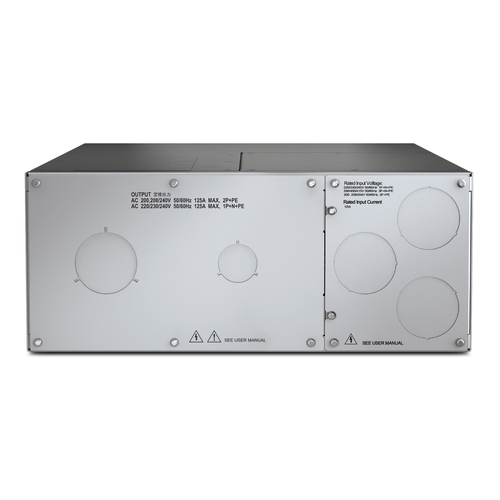

| Output connections | hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s) |
| Operating temperature (T-T) | -4 - 122 °F |
| Overload protection | Yes |
| Mounting | front |
| Package dimensions (WxDxH) | 610 x 845 x 305 mm |
