Description

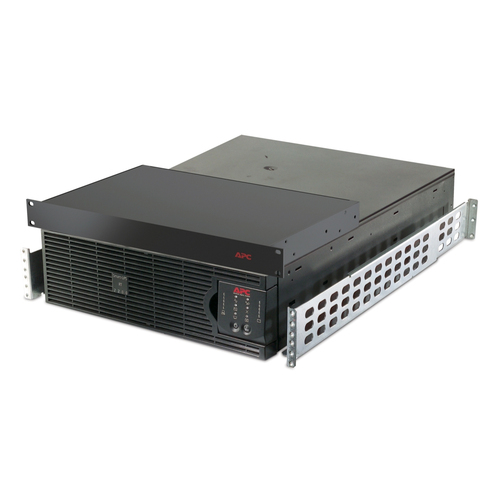

APC Smart-UPS RT 2200VA 230V - Marine, 2.2 kVA, 1540 W, Sine, 100 V, 280 V, 50/60 Hz
The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SURTD2200XLIM |
| Our part no. | 2709303 |
| EAN | 0731304286929 |
| Category | Power & UPS › UPS |
| Weight | 65.5 kg |
| Features | |
| Output power capacity | 2.2 kVA |
| Output power | 1540 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 555 J |
| Efficiency | 92% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |

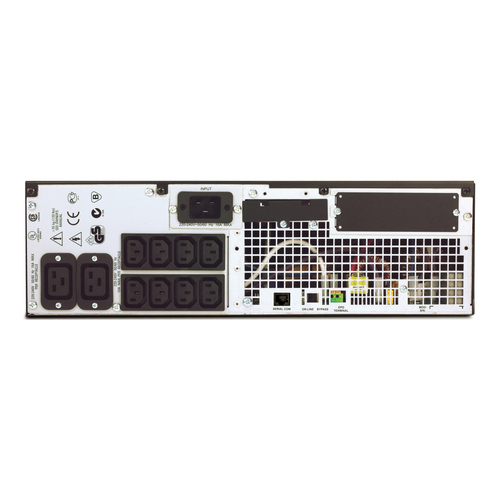

| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery replacement accessibility | End-user |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.5 h |
| Replacement battery cartridge | APCRBC140 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 3U |
| Cable length | 2.5 m |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Proposition 65 | Yes |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE; DNV; KCC |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 660 mm |
| Height | 432 mm |
| Weight | 54.5 kg |
| Packaging data | |
| Package weight | 63.6 kg |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4342.273094382711 |
| Country of origin | Philippines |
| Other features | |
| Input connection type | BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P |
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Output connection type | 8 IEC 60320C13; 2 IEC Jumpers; 2 IEC 60320C19 |
| Output voltage | 230 V |
| Mounting | front |
| Voltage | 230 V |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
