Description

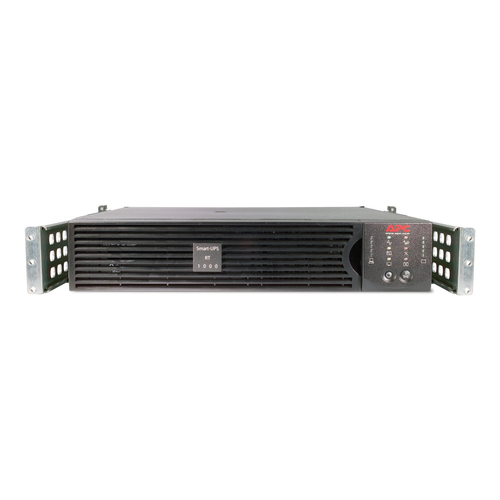

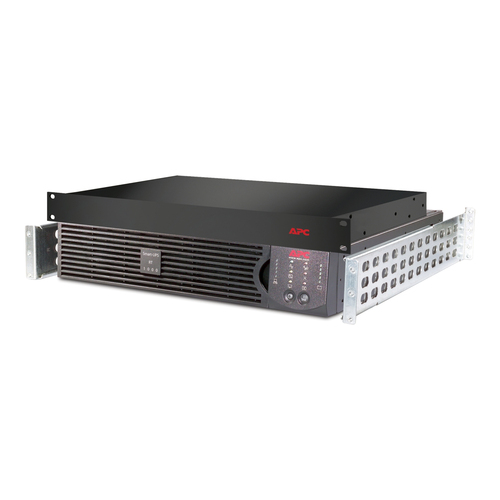

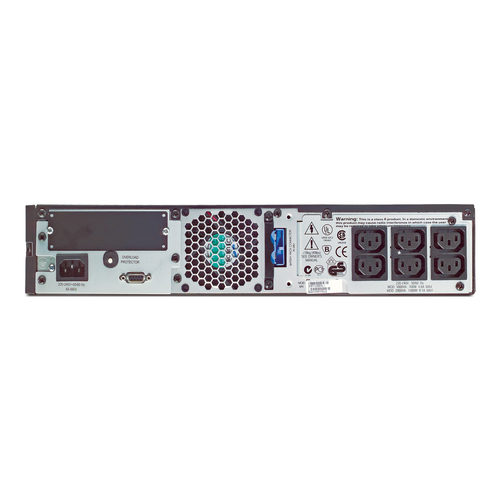

APC Smart-UPS RT 1000VA 230V - Marine, 1 kVA, 700 W, Sine, 100 V, 280 V, 50/60 Hz
The APC Smart-UPS RT is an online UPS with a power rating of 1000VA and output power capacity of 700 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as IEC 60320 and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SURT1000XLIM |
| Our part no. | 2709559 |
| EAN | 0731304283515 |
| Category | Power & UPS › UPS |
| Weight | 31.5 kg |
| Features | |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 420 J |
| Efficiency | 88% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| RS-232 ports | 1 |
| Battery | |
| Battery replacement accessibility | End-user |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Replacement battery cartridge | RBC31 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.5 m |
| Product colour | Black |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Proposition 65 | Yes |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE; DNV; KCC |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 23 kg |
| Packaging data | |
| Package weight | 27.8 kg |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1896.8446263959675 |
| Country of origin | Philippines |
| Other features | |
| Input connection type | IEC 60320 C14 |
| Dimensions (WxDxH) | 85 x 483 x 432 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Output connection type | 6 IEC 60320; 2 IEC Jumpers |
| Output voltage | 230 V |
| Mounting | front |
| Voltage | 230 V |
| Package dimensions (WxDxH) | 630 x 594 x 286 mm |
