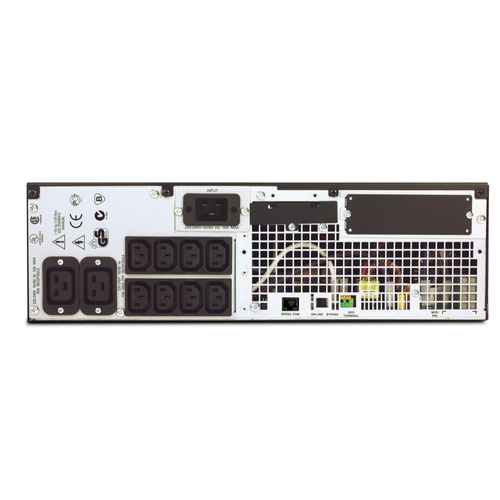

APC Smart-UPS RT 3000VA 230V - Marine

Description

APC Smart-UPS RT 3000VA 230V - Marine, Double-conversion (Online), 3 kVA, 2100 W, 100 V, 280 V, 50/60 Hz

High density, double-conversion on-line power protection with scalable runtime.

Specifications

BrandAPC
Manufacturer part no.SURTD3000XLIM
Our part no.2709699
EAN0731304283546
CategoryPower & UPS › UPS Batteries
Weight64.5 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2100 W
Input operation voltage (min)100 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Efficiency92%
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level55 dB
Ports & interfaces
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
Ethernet LAN (RJ-45) ports1
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time2.5 h
Design
Form factorRackmount
Rack capacity3U
Cable length2.44 m
Product colourBlack
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
Weight & dimensions
Width130 mm
Depth660 mm
Height432 mm
Weight54.5 kg
Packaging data
Package weight63.6 kg
Logistics data
Harmonized System (HS) code85078000
Other features
Dimensions (WxDxH)130 x 660 x 432 mm
Nominal output voltage230 V
Nominal input voltage230 V
Package dimensions (WxDxH)603 x 980 x 347 mm
