Description

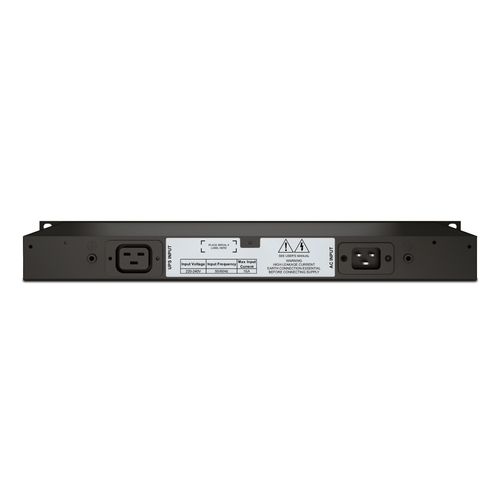

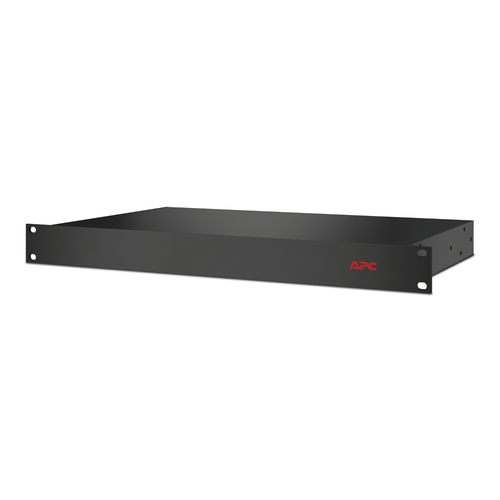

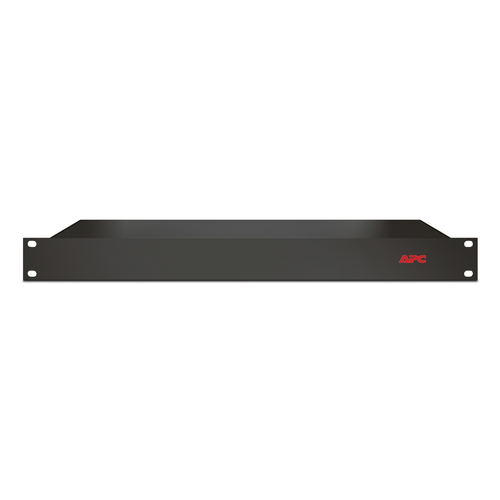

APC 3000VA Filter - MARINE, 3 kVA, 100 V, 240 V, 50/60 Hz, 200 V, 240 V
"High availability, ruggedized power protection for shipboard and other transportation applications."
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SURT023M |
| Our part no. | 2709940 |
| EAN | 0731304284697 |
| Category | Power & UPS › Other (0121) |
| Weight | 6.6 kg |
| Features | |
| Output power capacity | 3 kVA |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Ports & interfaces | |
| AC outlet types | C19 coupler |
| AC outlets quantity | 1 AC outlet(s) |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Cable length | 2.4 m |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainable packaging | No |
| SCIP number | 78ae8215-2bd3-41fb-b73f-2d8ff94b9860 |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | DNV |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 279 mm |
| Height | 44 mm |
| Weight | 5.09 kg |
| Packaging data | |
| Package weight | 6.36 kg |
| Logistics data | |
| Customs product code (TARIC) | 8543709099 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1803.0048291897692 |
| Country of origin | Thailand |
| Other features | |
| Input connection type | IEC 60320 C20 |
| Dimensions (WxDxH) | 432 x 279 x 44 mm |
| Output voltage | 200 V |
| Mounting | front |
| Package dimensions (WxDxH) | 381 x 559 x 76 mm |
