Description

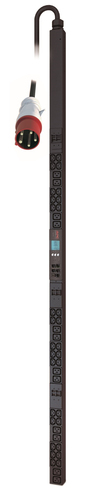

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP8886 |
| Our part no. | 270A400 |
| EAN | 0731304289937 |
| Category | Power & UPS › PDUs |
| Weight | 23 kg |
| Design | |
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 30 x IEC 320 C13 12 x IEC 320 C19 |
| Features | |
| LED indicators | Yes |
| Cable length | 1.83 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Load capacity | 22080 VA |
| Maximum input current per phase | 32 A |
| Power protection features | Overload |
| Maximum power | 22000 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 8.72 kg |
| Packaging data | |
| Package weight | 11.6 kg |
| Package width | 170 mm |
| Package depth | 112 mm |
| Package height | 2050 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 57837.86 |
