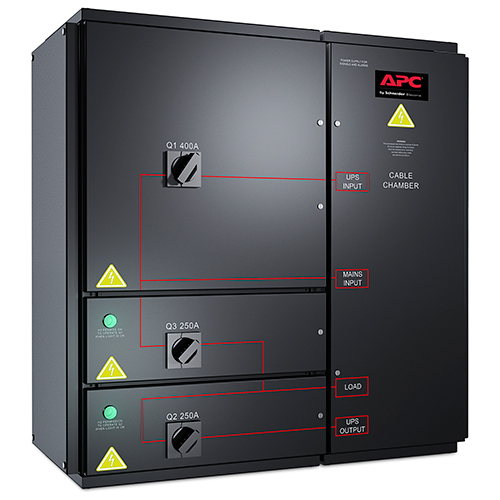

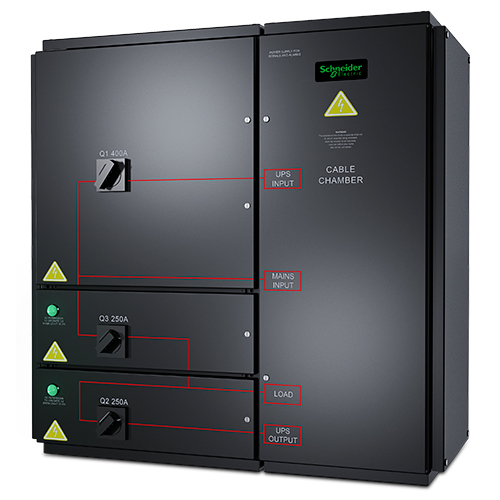

APC SYMMETRA PX 96/160KW WALL-MOUNTED MAINTENANCE BYPASS PANEL, 400V

Description

APC SYMMETRA PX 96/160KW WALL-MOUNTED MAINTENANCE BYPASS PANEL, 400V, 400 V, 50 Hz, 400 V, 400 A, Rackmount, Black

Wall-mount and floor-mount maintenance bypass panels isolate the UPS from the critical load during service procedures.

Specifications

BrandAPC
Manufacturer part no.SYWMBP96K160H
Our part no.270A915
CategoryPower & UPS › UPS Cables & Accessories
Weight0 kg
Features
Input operation voltage (min)400 V
Input frequency50 Hz
Output operation voltage (min)400 V
Maximum current400 A
Design
Form factorRackmount
Product colourBlack
Operational conditions
Operating temperature (T-T)-5 - 40 °C
Storage temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Certificates
Compliance certificatesRoHS
Weight & dimensions
Width1010 mm
Depth400 mm
Height1010 mm
Weight115 kg
Packaging data
Package width1200 mm
Package depth800 mm
Package height1300 mm
Package weight120 kg
Other features
Number of phases3
