Description

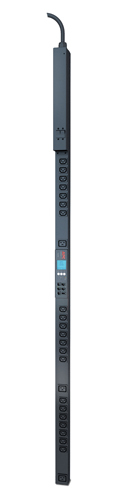

APC AP8453, Metered, Metered-by-outlet, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP8453 |
| Our part no. | 270B145 |
| EAN | 0731304317555 |
| Category | Power & UPS › PDUs |
| Weight | 10.1 kg |
| Design | |
| PDU types | Metered, Metered-by-outlet |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3.05 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Maximum power | 7680 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 8.21 kg |
| Packaging data | |
| Package weight | 10.5 kg |
| Package width | 163 mm |
| Package depth | 117 mm |
| Package height | 2037 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 5046.47 |
