Description

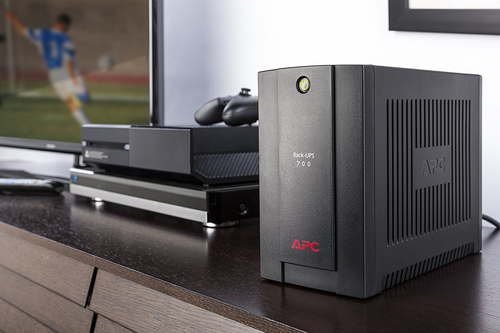

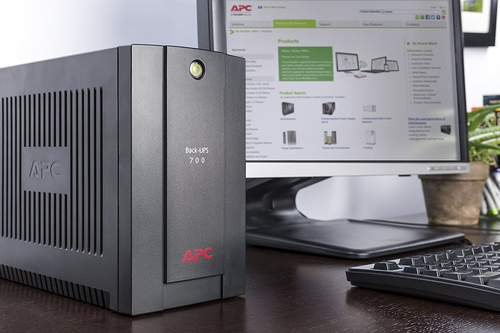

APC Back-UPS, Line-Interactive, 0.7 kVA, 390 W, Sine, 140 V, 300 V
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | BX700U-GR |
| Our part no. | 270B253 |
| EAN | 0731304315780 |
| Category | Power & UPS › UPS |
| Weight | 6.3 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.7 kVA |
| Output power | 390 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Hold time (max) | 4 ms |
| Efficiency | 96.6% |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Ports & interfaces | |

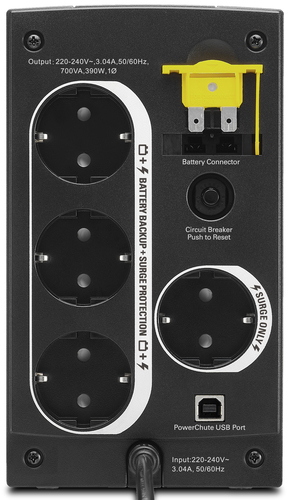

| AC outlet types | Type F |
| AC outlets quantity | 4 AC outlet(s) |
| Number of type F outputs | 4 |
| USB port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7.2 Ah |
| Battery capacity | 81 VAh |
| Battery voltage | 12 V |
| Typical backup time at full load | 1.3 min |
| Typical backup time at half load | 8.7 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 6 h |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Cable length | 1.52 m |
| Product colour | Black |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | REACH |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 256 mm |
| Height | 200 mm |
| Weight | 6 kg |
| Packaging data | |
| Bundled software | PowerChute Personal Edition |
| Package width | 295 mm |
| Package depth | 340 mm |
| Package height | 275 mm |
| Package weight | 6.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
