Description

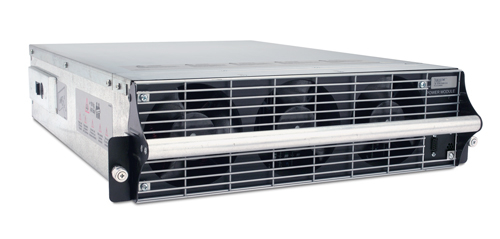

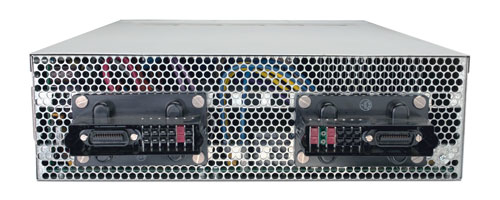

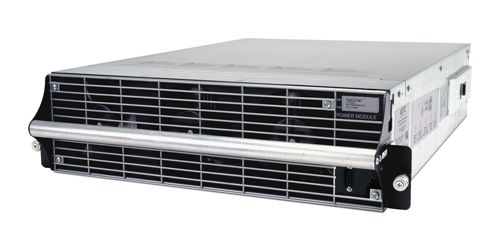

APC SYMMETRA PX, Double-conversion (Online), 10 kVA, 10000 W, Sine, 117 V, 239 V
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SYPM10KF2 |
| Our part no. | 270B276 |
| Category | Power & UPS › Other (0151) |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 117 V |
| Input operation voltage (max) | 239 V |
| Input frequency | 60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 208 V |
| Output frequency regulation | 60 Hz |
| Efficiency | 94.7% |
| Emergency Power Off (EPO) | No |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Design | |
| Form factor | Rackmount |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 4500 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | cUL Listed, FCC Part 15 Class A, ISO 14001, ISO 9001, UL 60950, UL Listed |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 700 mm |
| Height | 132 mm |
| Weight | 25.1 kg |
| Packaging data | |
| Package width | 595 mm |
| Package depth | 795 mm |
| Package height | 225 mm |
| Package weight | 28.1 kg |
