Description

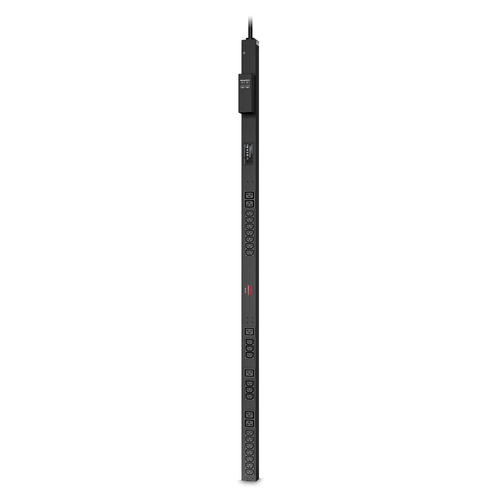

APC RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19, Basic, 0U, Vertical, Black, 26 AC outlet(s), C13 coupler, C19 coupler
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 32A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with an IEC 60309 32A 2P + E plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP6009A |
| Our part no. | 270B717 |
| EAN | 0731304327783 |
| Category | Power & UPS › PDUs |
| Weight | 7.9 kg |
| Design | |
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 26 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 60309 32 A 2P + E |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Power protection features | Overload |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE; EAC; IRAM; VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 43 mm |
| Height | 1626 mm |
| Weight | 6.18 kg |
| Packaging data | |
| Package weight | 8 kg |
| Package width | 226 mm |
| Package depth | 135 mm |
| Package height | 1875 mm |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 4481.3674802844 |
