APC AP6015A power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Description

APC AP6015A, Basic, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Specifications

BrandAPC
Manufacturer part no.AP6015A
Our part no.270B729
EAN0731304327790
CategoryPower & UPS › PDUs
Weight1.5 kg
Design
PDU typesBasic
Rack capacity0U/1U
MountingHorizontal/Vertical
Product colourBlack
Ports & interfaces
AC outlets quantity8 AC outlet(s)

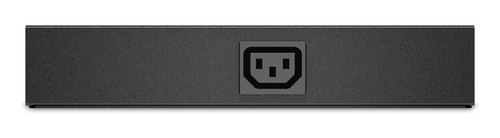

Power plugC14 coupler
AC outlet typesC13 coupler
Features
Cable length3.65 m
Power
Nominal input voltage230 V
AC input frequency50 - 60 Hz
Maximum current10 A
Nominal output voltage120 - 240 V
Load capacity2300 VA
Maximum input current per phase10 A
Maximum power2300 W
Certificates
Compliance certificatesRoHS
CertificationVDE, CE
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
