Description

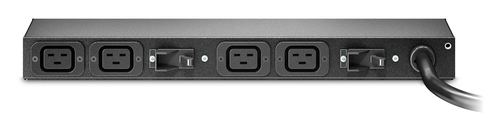

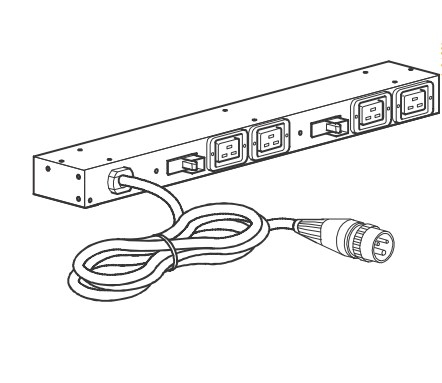

APC AP6032A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 4 AC outlet(s)
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP6032A |
| Our part no. | 270B731 |
| EAN | 0731304327820 |
| Category | Power & UPS › PDUs |
| Weight | 3.4 kg |
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C19 coupler |
| Features | |
| Cable length | 3.65 m |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum power | 7680 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | VDE, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 43.8 mm |
| Weight | 2.78 kg |
