Description

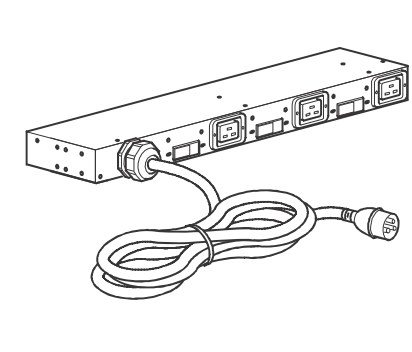

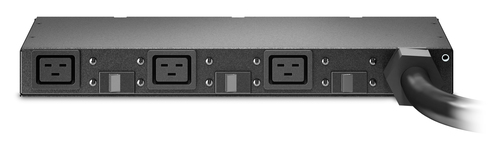

APC AP6038A, Basic, 0U/1U, Horizontal/Vertical, Black, 3 AC outlet(s), C19 coupler
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP6038A |
| Our part no. | 270B732 |
| EAN | 0731304321972 |
| Category | Power & UPS › PDUs |
| Weight | 7.2 kg |
| Design | |
| PDU types | Basic |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C19 coupler |
| Features | |
| Cable length | 3.65 m |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 48 A |
| Nominal output voltage | 200-240 V |
| Load capacity | 11040 VA |
| Maximum input current per phase | 48 A |
| Maximum power | 11000 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | VDE, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 39.5 mm |
| Depth | 19.5 mm |
| Height | 50 mm |
| Weight | 5.4 kg |
