Description

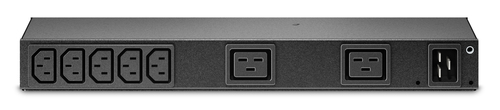

APC AP6120A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 7 AC outlet(s)
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP6120A |
| Our part no. | 270B733 |
| EAN | 0731304327851 |
| Category | Power & UPS › PDUs |
| Weight | 1.8 kg |
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 7 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100-240 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | UL/C-UL, VDE, CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 38.8 mm |
| Weight | 1.56 kg |
