Description

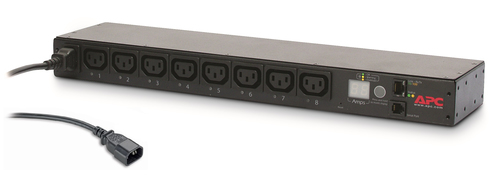

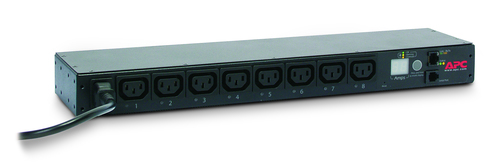

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord, Metered, Switched, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7920B |
| Our part no. | 270B808 |
| EAN | 0731304331612 |
| Category | Power & UPS › PDUs |
| Weight | 3.4 kg |
| Design | |
| PDU types | Metered, Switched |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
| Features | |
| Cable length | 1.98 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Power | |
| Nominal input voltage | 200-230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 1 - 15000 m |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 108 mm |
| Height | 44 mm |
| Weight | 2.27 kg |
| Packaging content | |
| Packaging content | Installation Guide, Rack Mounting Brackets, User Manual |
| Packaging data | |
| Package weight | 3.45 kg |
| Package width | 470 mm |
| Package depth | 343 mm |
| Package height | 70 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 915.89 |
